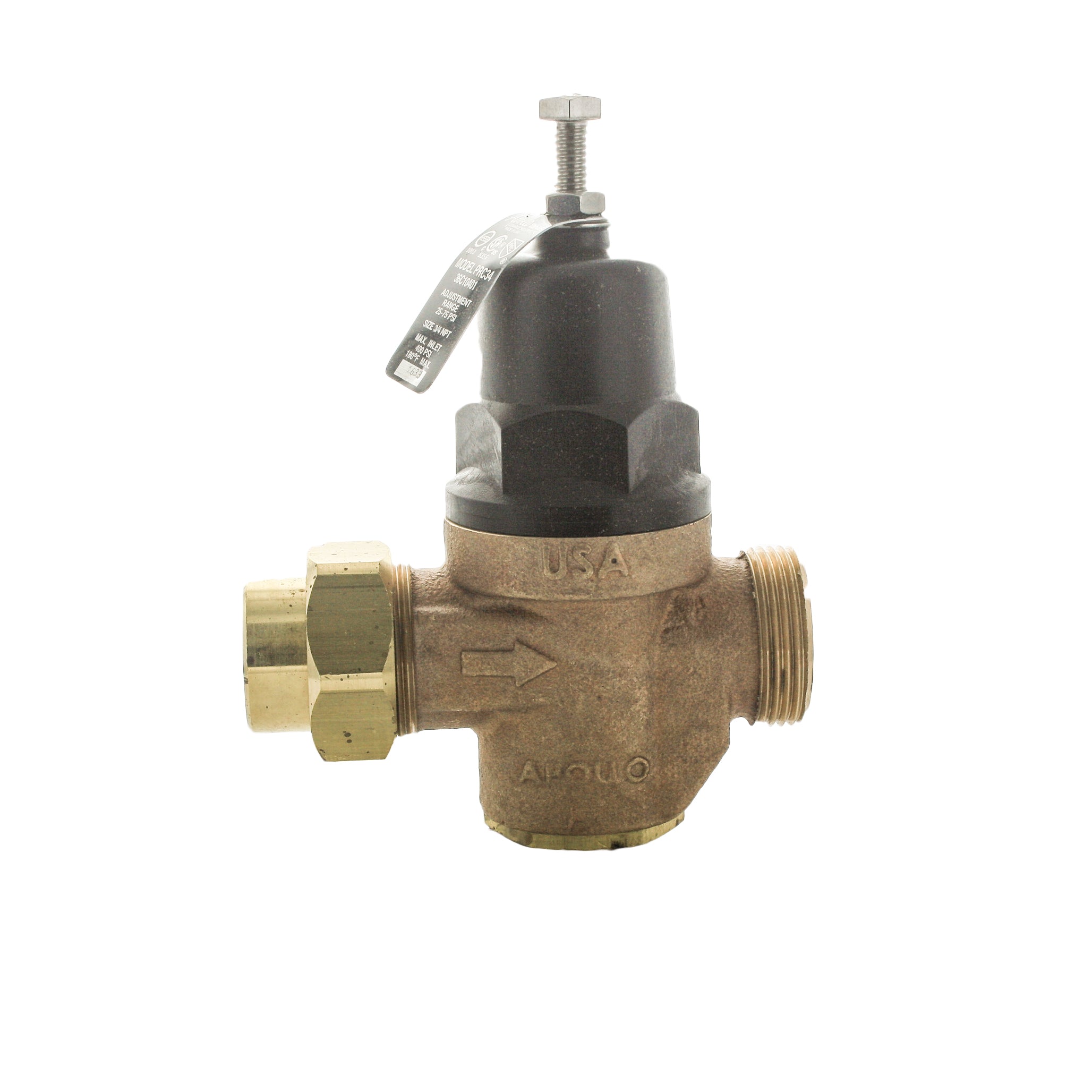

Front view of Conbraco Apollo 36C-105-01 bronze 1-inch pressure reducing valve with union connection and visible adjusting screw.

Conbraco Apollo 36C-105-01 1" Pressure Reducing Valve

Brand: Conbraco Industries
Save 25%
$262.64
$196.98
SKU 36C-105-01

Notify me when back in stock

The Conbraco (Apollo) 36C-105-01 is a compact, direct‑acting 1" pressure reducing valve engineered to protect water distribution systems by automatically controlling high inlet pressure and stabilizing downstream pressure. Factory preset to 50 psi and field adjustable, this model combines durable materials and serviceable construction for long-term reliability in irrigation, plumbing, and commercial water systems.

  • Adjustable outlet pressure: Factory preset 50 psi; adjustable 25–75 psi (high setting options up to 125 psi available).
  • Rugged construction: Bronze body (ASTM B584) with stainless steel internal strainer and stainless adjusting screw for corrosion resistance.
  • Reliable softgoods: EPDM seat and disc with FDA‑grade nitrile O‑rings for consistent sealing and compatibility with potable and non‑potable water.
  • Performance: Handles maximum supply pressures up to 400 psi and standard temperature range 33°F to 180°F.
  • Serviceability: Sealed spring cage, bottom cleanout access to seat disc and strainer, and easy inline servicing without full removal.
  • Vault & field ready: Sealed spring cage for vault installation, built‑in thermal expansion bypass, and multiple connection options including union x NPT.

Dimensions and installation notes: nominal 1" size with a compact inlet‑to‑outlet footprint suitable for tight piping layouts. Typical flow capability for the 1" assembly meets many irrigation and small commercial demands; select sizing based on system flow and headloss requirements. Documents available include the installation/operation manual and a full submittal/specification sheet for engineering review. For maintenance: inspect and clean the stainless strainer periodically and verify outlet set pressure after major system changes or thermal events.

Reviews

Frequently Asked Questions

What outlet pressure range does this valve support?
Factory preset to 50 psi and field adjustable across a 25–75 psi range; high‑pressure options up to 125 psi exist.
What materials are used in key wetted parts?
Bronze body (ASTM B584), EPDM seat and disc, stainless steel strainer and adjusting screw, and FDA‑grade nitrile O‑rings.
Can I service the valve without removing it from the line?
Yes. The PRC design includes bottom cleanout access to the seat disc and stainless strainer for inline servicing.
What are the maximum pressure and temperature limits?
Rated for supply pressures up to 400 psi and standard operating temperatures from 33°F to 180°F.
