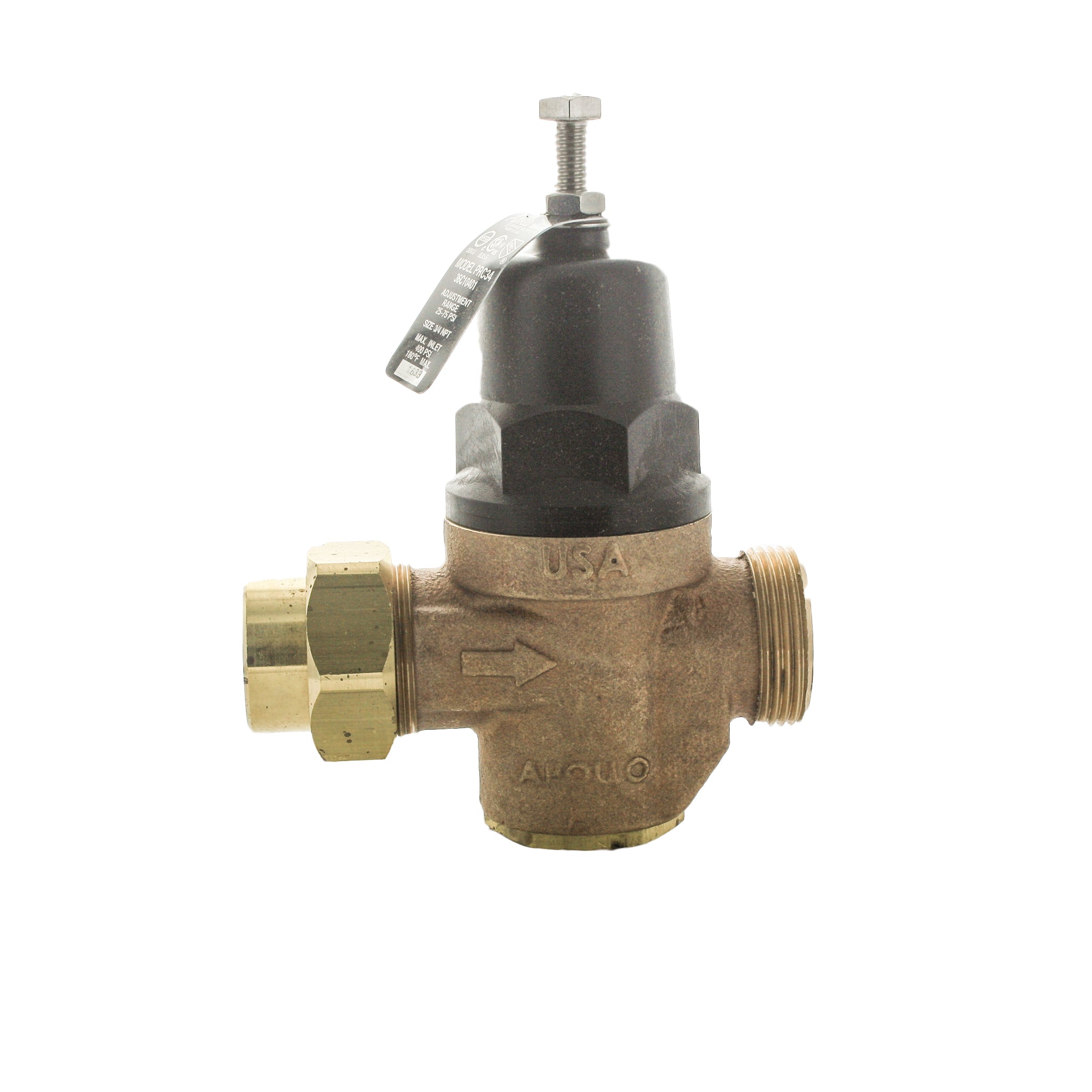

Conbraco 36C-104-01 3/4" Pressure Reducing Valve with Union
Brand: Conbraco Industries
Save 25%
Original Price
$214.76
Current Price
$161.07
SKU 36C-104-01
Compact, reliable pressure reducing valve engineered for non-potable water systems. The Conbraco 36C-104-01 (3/4" nominal) protects downstream piping and fixtures by reducing high inlet pressure to a stable, adjustable outlet pressure while providing easy service access.

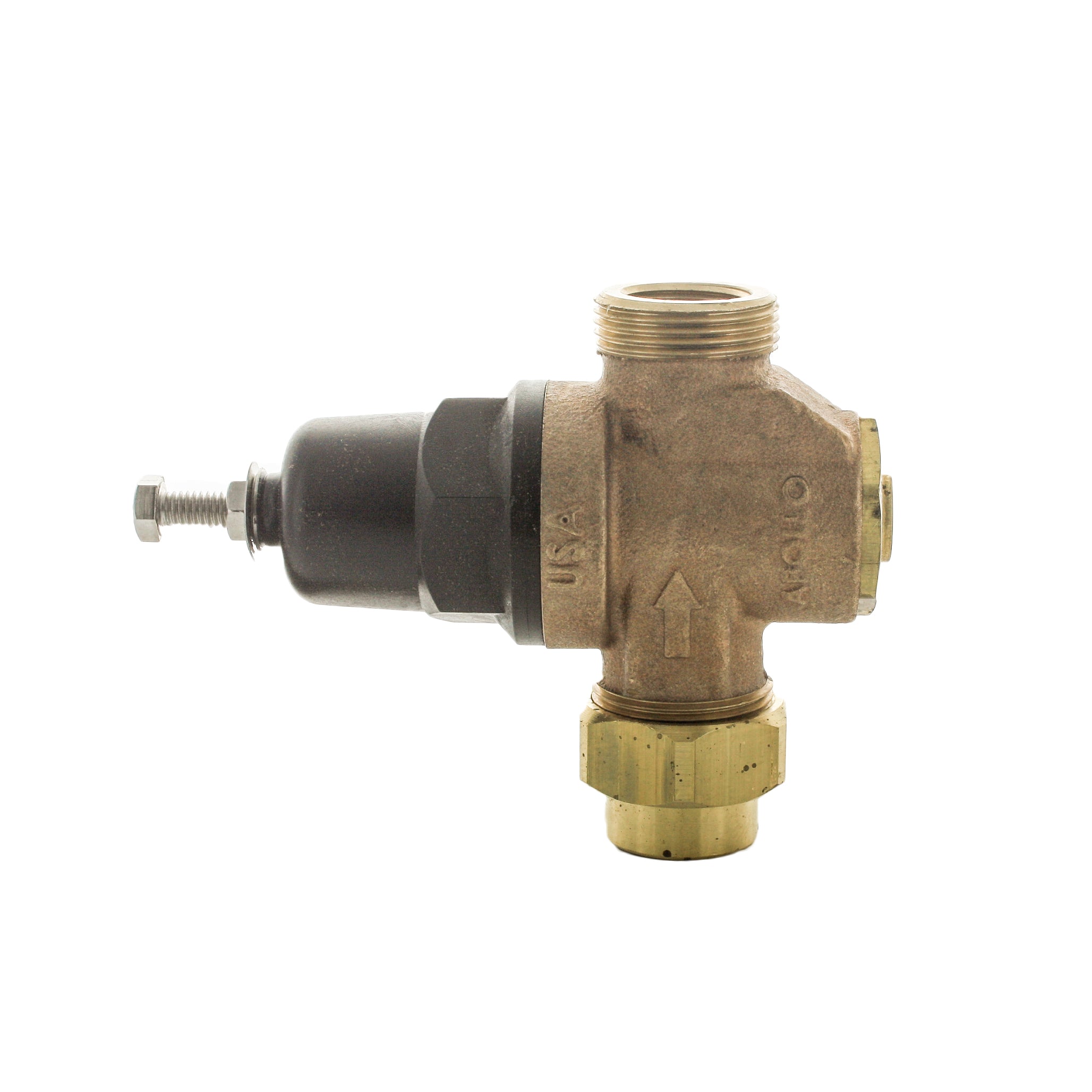

- Nominal size: 3/4" with union x NPT connection for in-line service and simple piping connection.
- Body & trim: Bronze body with brass trim and stainless-steel internal hardware for long service life in potable and non-potable systems.
- Softgoods: EPDM seat disc and O-rings for reliable sealing and NSF-grade compatibility.
- Performance: Factory preset to 50 psi; adjustable range 25–75 psi, handles supply pressures up to 400 psi.

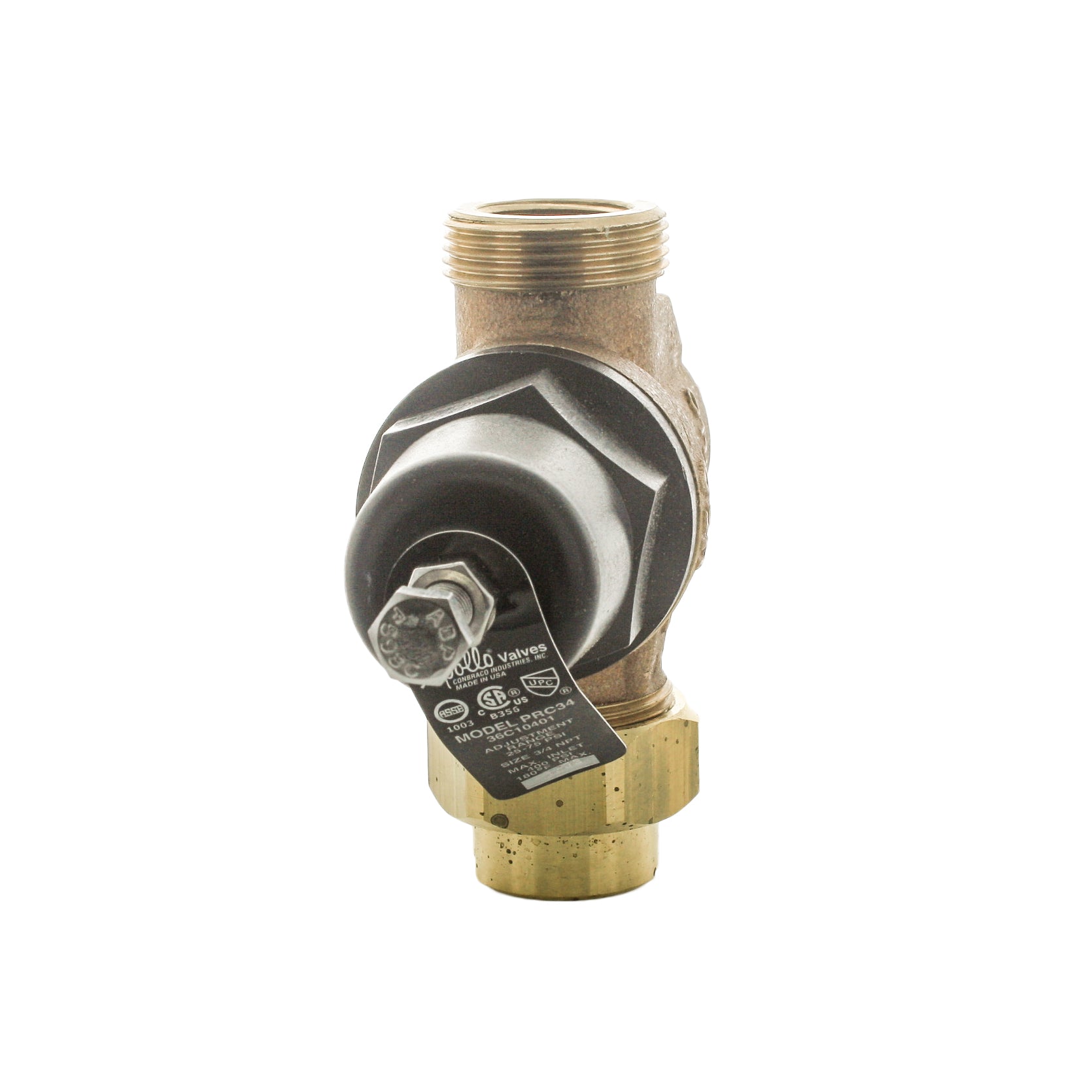

- Design features: Balanced piston, sealed spring cage, built-in thermal expansion bypass, and integral stainless strainer with bottom cleanout for easy maintenance.
- Temperature range: Designed for 33–180°F operation in typical domestic and commercial water systems.

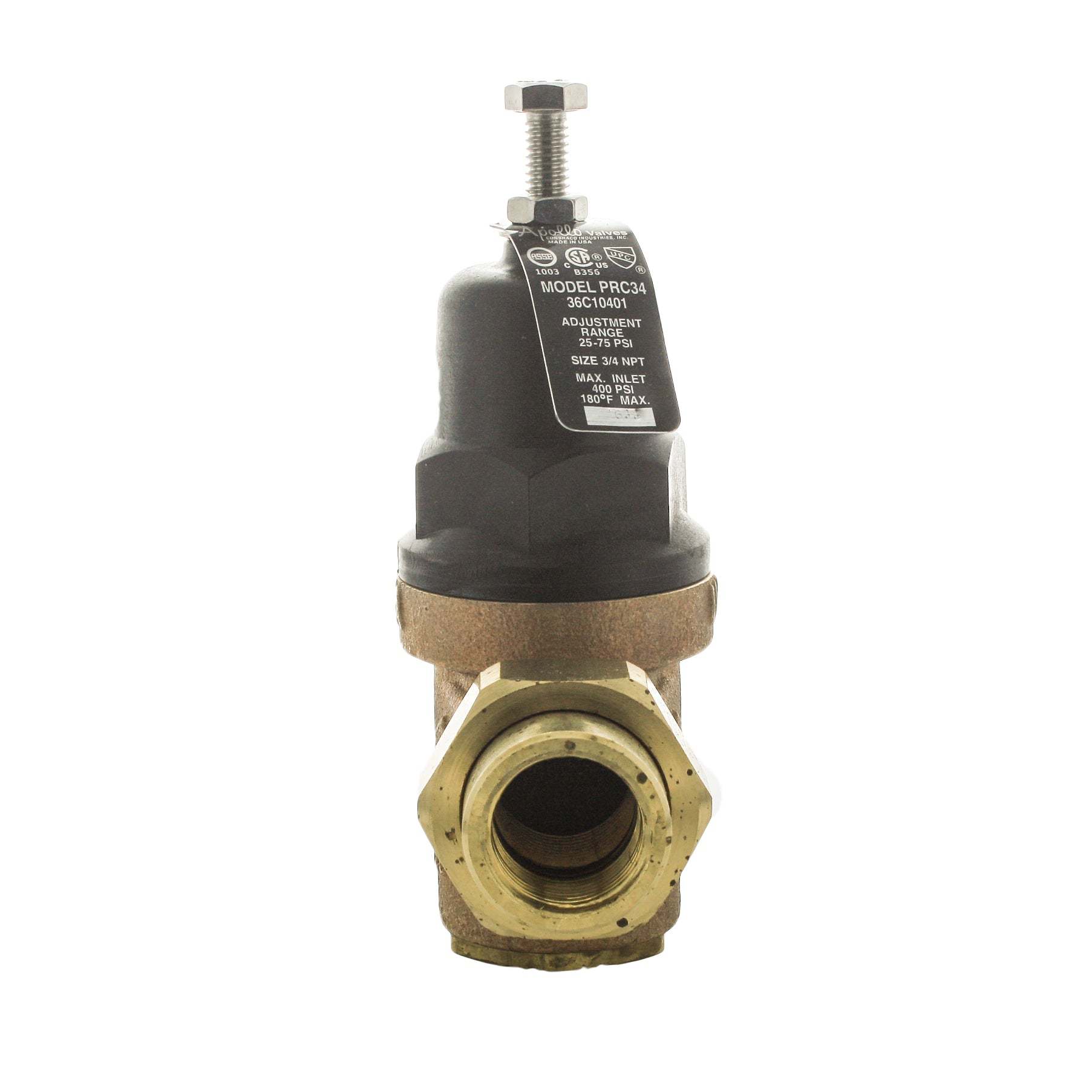

- Serviceability & approvals: Bottom access to seat disc and strainer, Noryl cap, and common industry approvals (ASSE/CSA/NSF where applicable).
Use this valve where stable outlet pressure is required to protect downstream equipment, reduce water hammer and control system pressure. Installation should follow local plumbing codes and the included installation/operation manual. Periodic inspection and cleaning of the stainless strainer will help maintain performance.
