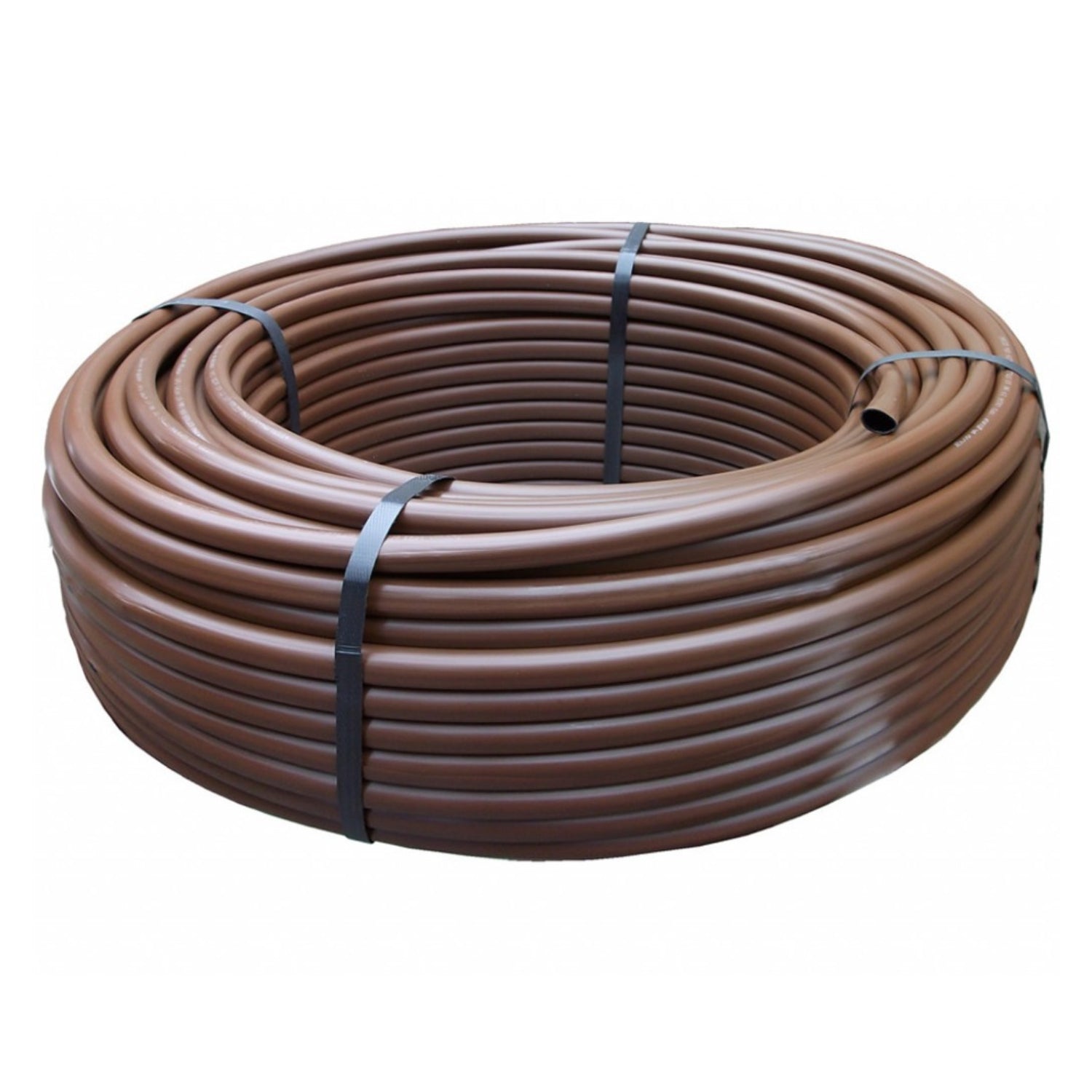

Rain Bird XFD Blank Dripline - 250 ft Coil

Rain Bird XFD Blank Dripline - 250 ft Coil

Brand: Rain Bird
$90.02
SKU XFD250
In Stock (3)

Notify me when back in stock

Durable, pressure-compensating Rain Bird XFD blank dripline designed for reliable surface and near-surface irrigation. The extra-flexible, dual-layer tubing resists UV, chemicals and algae while allowing longer lateral runs and tighter bends for faster installation.

  • Length: 250 ft (76 m) coil, also available in 100' and 500' sizes.
  • Flow & Markings: Flow-rate color codes (black = 0.9 gph, tan = 0.6 gph) for easy identification.
  • Operating Range: 8.5 to 60 psi (0.58 to 4.1 bar); water up to 100°F, ambient to 125°F.
  • Dimensions: Outside Ø 0.634" (16.1 mm), Inside Ø 0.536" (13.6 mm), wall 0.049" (1.2 mm).
  • Compatibility: Accepts XF dripline insert fittings and Rain Bird Easy Fit compression fittings (not compatible with 16 mm fittings).
  • Filtration: Requires 120-mesh filtration to prevent clogging and extend service life.

Made from UV-resistant polyethylene with a brown-over-black (or purple-over-black) outer layer to blend with landscape. Patent-pending emitter design and textured finish improve reliability and handling. Refer to the technical specifications and installation guide included in product documents for friction-loss charts, recommended spacing options (12" or 18"), and guidance on using air/vacuum relief valves for below-grade installations.

Reviews

Frequently Asked Questions

What lengths and coil sizes are available for XFD tubing?
This listing is a 250 ft (76 m) coil. XFD is also sold in 100 ft and 500 ft coils for design flexibility.
Which fittings and filter should I use with this blank dripline?
Use XF dripline insert fittings or Rain Bird Easy Fit compression fittings. A 120-mesh filter is required to protect the line.
What pressure and temperature ranges are recommended for XFD tubing?
Recommended operating pressure is 8.5–60 psi. Water up to 100°F and ambient temperatures up to 125°F are supported.
