Hunter I-CORE Controllers and Timers

The next generation of Commercial control. Designed for demanding commercial and high-end residential applications.
Loaded with innovative features like state of the art flow monitoring, quick system overview access, a factory-installed SmartPort™, six language capability, and a bold, backlit display, the I-Core should be considered for most high-end irrigation projects.
The plastic cabinet version is expandable from 6 to 30 stations, and the metal cabinet model can handle up to 42. Adding a DUAL two-wire module can even expand station capability to 48. Stainless steel and pedestal models are also available, providing a broad range of enclosure choices. With other add-on options like a ROAM or ROAM XL remote and the built-in conservation-focused Solar-Sync, I-Core's possibilities are all but limitless.

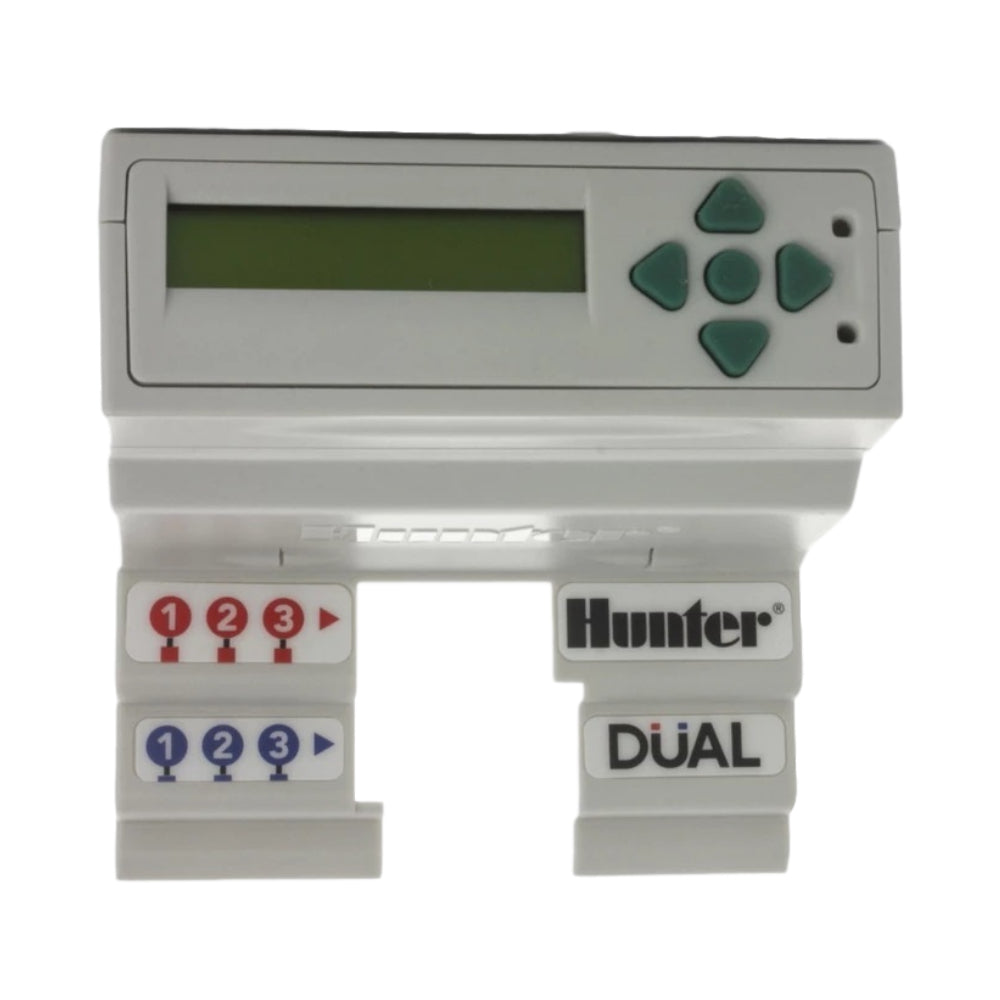

Hunter DUAL Decoder System
Hunter DUAL Decoder System

Models

  • IC-600-PL - 6-Station base domestic model with outdoor plastic cabinet, can be configured by adding modules up to 30 stations
  • IC-600-M - 6-Station base model with metal cabinet, can be configured by adding modules up to 42 stations
  • IC-600-PP - 6-Station base model with plastic pedestal, can be configured by adding modules up to 42 stations

Dimensions

  • IC-600-PL - 11" H x 13-1/2" W x 6-1/2" D
  • IC-600-M - 12-3/8" H x 15-1/2" W x 6-7/16" D
  • IC-600-PP - 38-3/8" H x 21-9/16" W x 15-7/8" D

Specifications and Features

  • Modular controller expandable from 6 stations to 30 stations (plastic cabinet) and 42 stations (metal cabinet) with 6-station ICM modules
  • Unique module design allows servicing of module without removing field wires from the controller
  • Large, easy to read, backlit graphics display
  • Removable front panel for remote programming
  • Seasonal Adjustment by Program (globally, monthly, or daily by Solar Sync)
  • Seasonal Adjustment: 0% to 300%
  • 4 independent programs (A, B, C, & D)
  • Multi-language capability, programmable in six different languages
  • Diagnostic Dashboard™ continually monitors and displays system operation for flow, station and sensor status
  • Automatic short circuit detection, skips shorted stations and continues watering, no fuses to replace
  • Station run times: 12 hours
  • Eight start times for Programs A,B, and C; 16 start times for Program D
  • Program stack and overlap capability, any two programs can run concurrently
  • Real time flow monitoring capability built in
  • Flow learning by station and station level diagnostics, alarms and shutdowns
  • Flow totalizer provides cumulative flow history
  • Hunter Quick Check™ helps troubleshoot field wiring issues
  • No Water Window capability
  • Total run time calculator
  • Test program feature
  • One button manual start and advance
  • Easy Retrieve Memory™ backup feature can save and restore preferred program
  • Factory installed SmartPort™ connector for use with Hunter ROAM and ICR Remotes
  • All models NEMA rated for weather resistance
  • Programmable station delay up to 9 hours
  • Programmable rain delay up to 180 days
  • Cycle and Soak capability by station
  • Transformer input: 120/240 VAC, 50/60 Hz
  • Transformer output: 24 VAC, 1.5 A Station output: 24 VAC, 0.56 A (2 valves)
  • Maximum total output: 24 VAC, 1.4 A (5 valves)
  • Master valve output: 24 VAC, 0.28 A
  • Multiple sensor inputs
  • Rain sensor override
  • UL, C-UL, CE, C-tick
