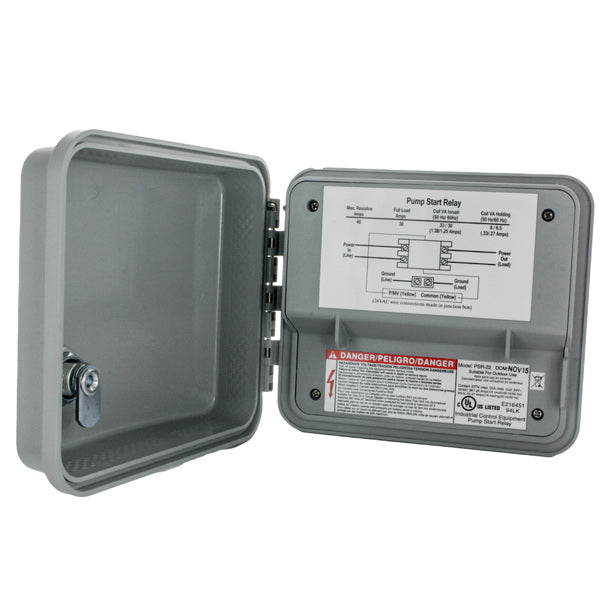

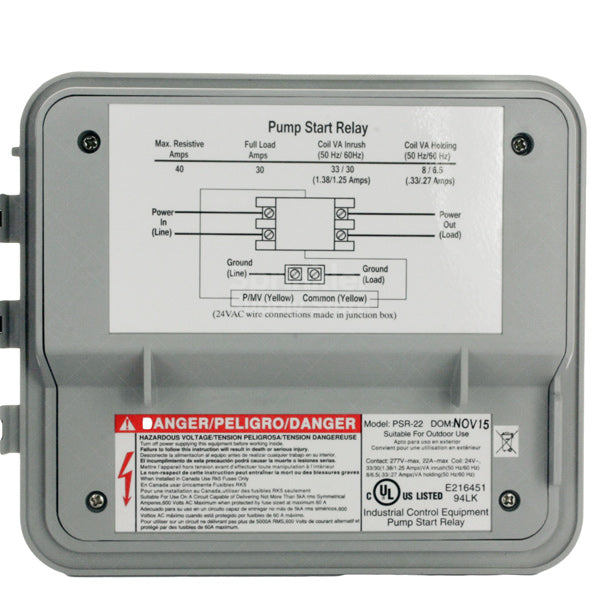

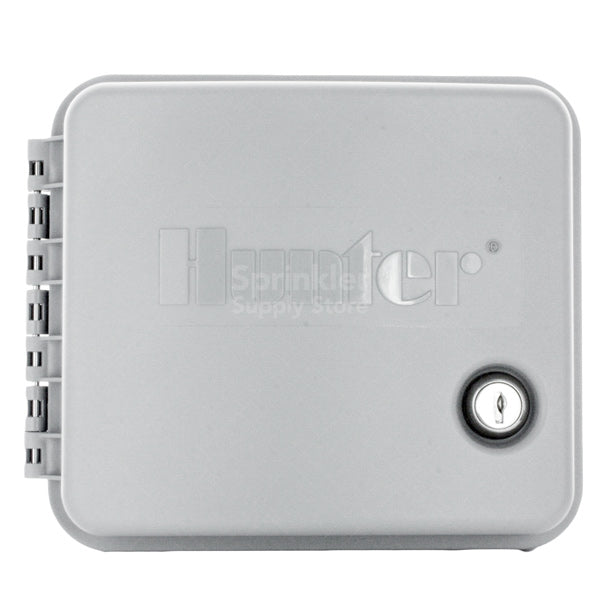

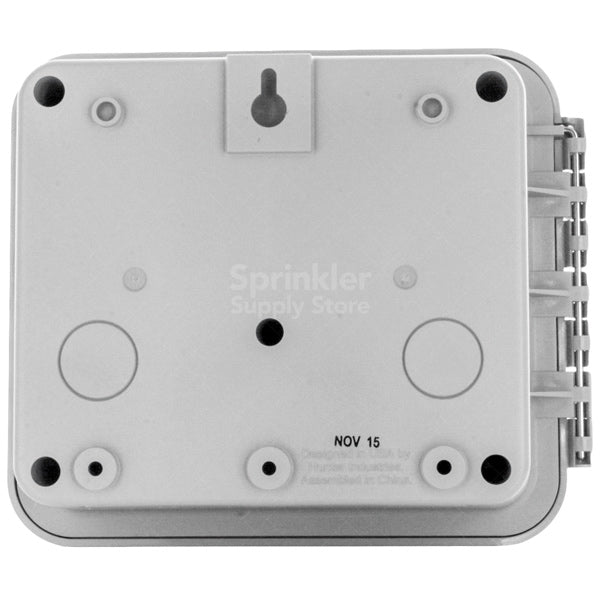

Hunter - PSR-22 - Double Pole/Single Throw Pump Start Relay, 3.5 HP
- Double Pole/Single Throw Pump Start Relay
- For 120 VAC pumps up to 2 HP or 240 VAC pumps
- Up to 3.5 HP
When a system requires the use of a booster pump or pulls water directly from a creek or pond, it’s imperative to include a relay that can be counted on to activate the pump each and every time. Hunter’s Pump Start Relay (PSR) has been created to provide that reliability–as well as a lockable NEMA rated enclosure–at an economical price. Available in a choice of three models to accommodate a variety of power sources and landscape needs, the PSR is fully compatible with all standard 24VAC controllers. It’s also designed with user-friendliness in mind. Flying wire leads allow for effortless 24V connections. Plus a wide array of "knockouts" make wiring easy and accommodating to most mounting specifications.
