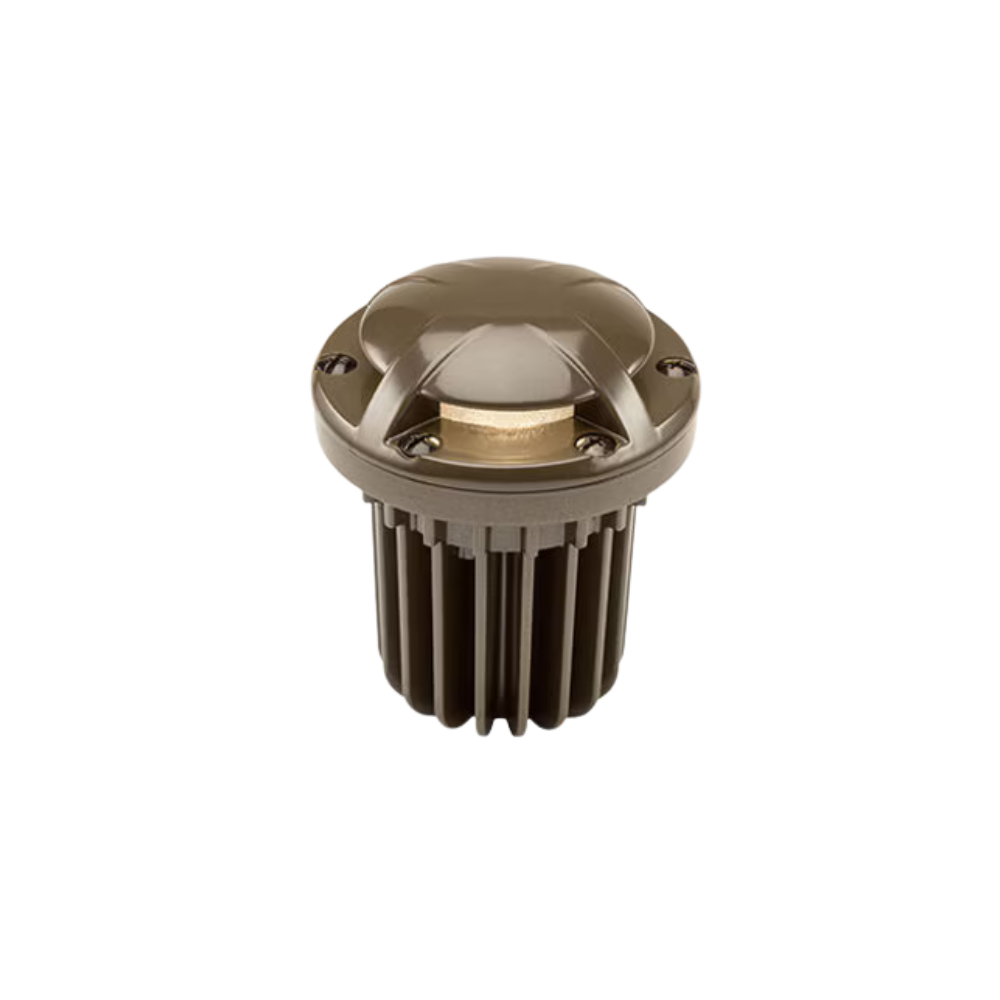

FX FC 6LED Well Light, Ground Wash 180 — Brass Housing Bronze

FX FC 6LED Well Light, Ground Wash 180 — Brass Housing Bronze

Brand: FX
Save 15%
$404.06
$341.68
SKU FCZD6LEDGW180BZ

Notify me when back in stock

The FX FC 6LED Well Light with ZD and 180° ground wash in Brass Housing Bronze delivers precise, low-glare in-grade illumination for decks, patios, pathways, and hardscape features. Built for installers and designers who demand durable performance, the FC combines integrated LED efficiency with flexible optics and easy serviceability.

  • Integrated 6-LED board, 67W nominal power, rated for approximately 50,000 hours L70.
  • Construction: die-cast brass or aluminum body with marine-grade finishes for long outdoor life.
  • Optics: field-adjustable 180° ground-wash faceplate for no-glare illumination; four faceplate options available.
  • Controls: ZD (Zone Dimming) option enables zone-based dimming and color control when used with compatible controllers; phase and PWM dimming supported.
  • Installation: removable installation sleeve allows easy removal and adjustment in concrete; input voltage 10–15V low-voltage operation.
  • Applications: ideal for deck and patio ground-wash, step and wall accenting, and subtle in-grade landscape illumination.

Spec sheet and owner's manual are available for detailed dimensions, wiring, and ordering codes. Choose the FC for a compact, serviceable in-grade fixture that balances refined design, precise control, and long-term reliability.

Reviews

Frequently Asked Questions

What voltage does this FX FC well light require?
Operates on 10–15V low-voltage systems; use a compatible transformer and follow wiring guidelines in the manual.
How does the ZD option affect dimming and control?
ZD (Zone Dimming) enables zone-based dimming and color control when paired with compatible controllers like Luxor; phase and PWM dimming are supported.
What maintenance does the ground-wash faceplate need?
Minimal maintenance: keep the lens clear of debris, wipe with a soft cloth, and follow the owner's manual for service and safety instructions.
