NDS 812 - 5 in. Pro Series Deep Profile End Cap, Light Gray

Brand: NDS
Save 25%
$20.50
$15.38
SKU 812
In Stock (3)

Notify me when back in stock

The NDS 812 5 in. Pro Series Deep Profile End Cap seals the end of the 5 inch Pro Series channel drain to direct flow toward the channel outlet. Molded from UV-treated PVC, the end cap installs quickly - attach directly to the channel or solvent-weld for a watertight connection. Durable for medium-duty applications, it pairs with NDS Pro Series systems for reliable surface drainage on driveways, patios, courtyards, and walkways.

  • Material: UV-treated polyvinyl chloride (PVC) for long-term outdoor durability.

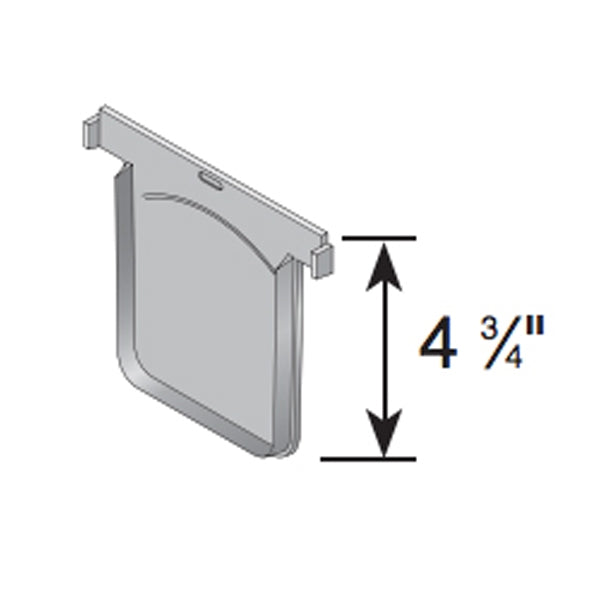

  • Size: 5 in. Pro Series deep profile; end cap length approximately 4-3/4 in.
  • Compatibility: Fits NDS 5 in. Pro Series channel drains and accepts 3 in. sewer & drain fittings.
  • Installation: Snap-fit into channel or solvent-weld with PVC adhesive for a watertight seal.
  • Load Rating & Use: Class B performance (approx. 61-175 PSI); recommended for medium-duty pneumatic tire traffic, autos and light trucks under 20 mph.
  • System Notes: When combined with the 5 in. Pro Series channel, the system provides interlocking sections adjustable to required lengths and multiple outlet options.

Includes one end cap; sold individually. See NDS product literature for full installation details and part compatibility before specifying.

Reviews

Frequently Asked Questions

What material is the NDS 812 end cap made from?
The NDS 812 is molded from UV-treated PVC (polyvinyl chloride) for long-term outdoor durability.
Will this end cap fit my 5 inch Pro Series channel?
Yes. It fits NDS 5 in. Pro Series channel drains and accepts 3 in. sewer & drain fittings for standard connections.
Can I solvent-weld the end cap for a watertight connection?
Yes. The end cap can be solvent-welded with PVC adhesive or snapped in place for a secure, watertight seal.
Is the NDS 812 suitable for vehicular traffic?
Yes. Classified Class B (approx. 61–175 PSI), it is recommended for medium-duty pneumatic tire traffic and light vehicles under 20 mph.
