NDS 830 Pro Series 8-inch shallow profile channel drain section in light gray, top view showing slotted grate and interlocking end joint detail.

NDS 830 Pro Series 8" x 20" Shallow Profile Channel Drain

Brand: NDS
Save 25%
$95.40
$71.55
SKU 830
In Stock (1)

Notify me when back in stock

The NDS 830 Pro Series 8" x 20" shallow profile channel drain is a durable, modular solution for hardscape drainage. Engineered in high‑grade polyolefin (HDPE), this 20" section provides a low-profile 4.5" depth and a robust interlocking joint system for quick, reliable runs.

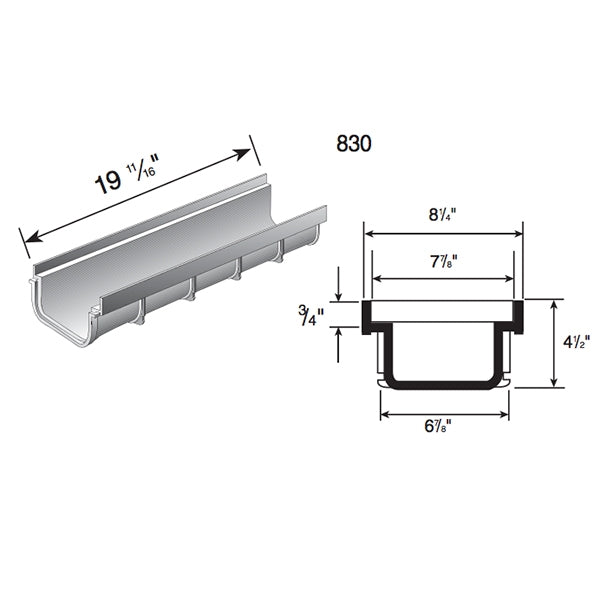

  • Section size: Nominal 20" length (19-11/16"), 8-1/4" outside width for high flow capacity.
  • Shallow profile: 4.5" channel depth keeps the drain low-profile while maintaining strong flow rates.
  • Material & durability: High‑grade polyolefin (HDPE) construction offers UV and chemical resistance.
  • Interlocking system: Snap-lock male/female joints allow long runs, and sections can be cut down to 4" increments.
  • Outlet compatibility: Side and bottom knockouts accept 3" and 4" sewer & drain pipe connections for flexible plumbing.
  • Grates & load options: Multiple grate styles (plastic, nylon, steel, ductile iron) fit the Pro Series to match pedestrian or vehicular use.

Ideal for patios, pool decks, driveways, athletic courts, and commercial hardscapes, the NDS 830 installs quickly and works with standard SCH 40 pipe and common fittings. Refer to NDS technical literature or the manufacturer's installation manual for exact flow rates, load ratings, and grate selection guidance.

Reviews

Frequently Asked Questions

What are the exact dimensions of the NDS 830 channel?
Nominal 20" section (19-11/16" actual), outside width ~8-1/4" and shallow depth 4.5".
How does the interlocking system affect installation and run length?
Snap-lock male/female joints let sections snap together without couplers; runs extend quickly and sections can be cut down to 4" increments.
Which pipe outlet sizes are compatible with this channel drain?
Side and bottom knockouts accept standard 3" and 4" sewer & drain connections and work with SCH 40 fittings.
