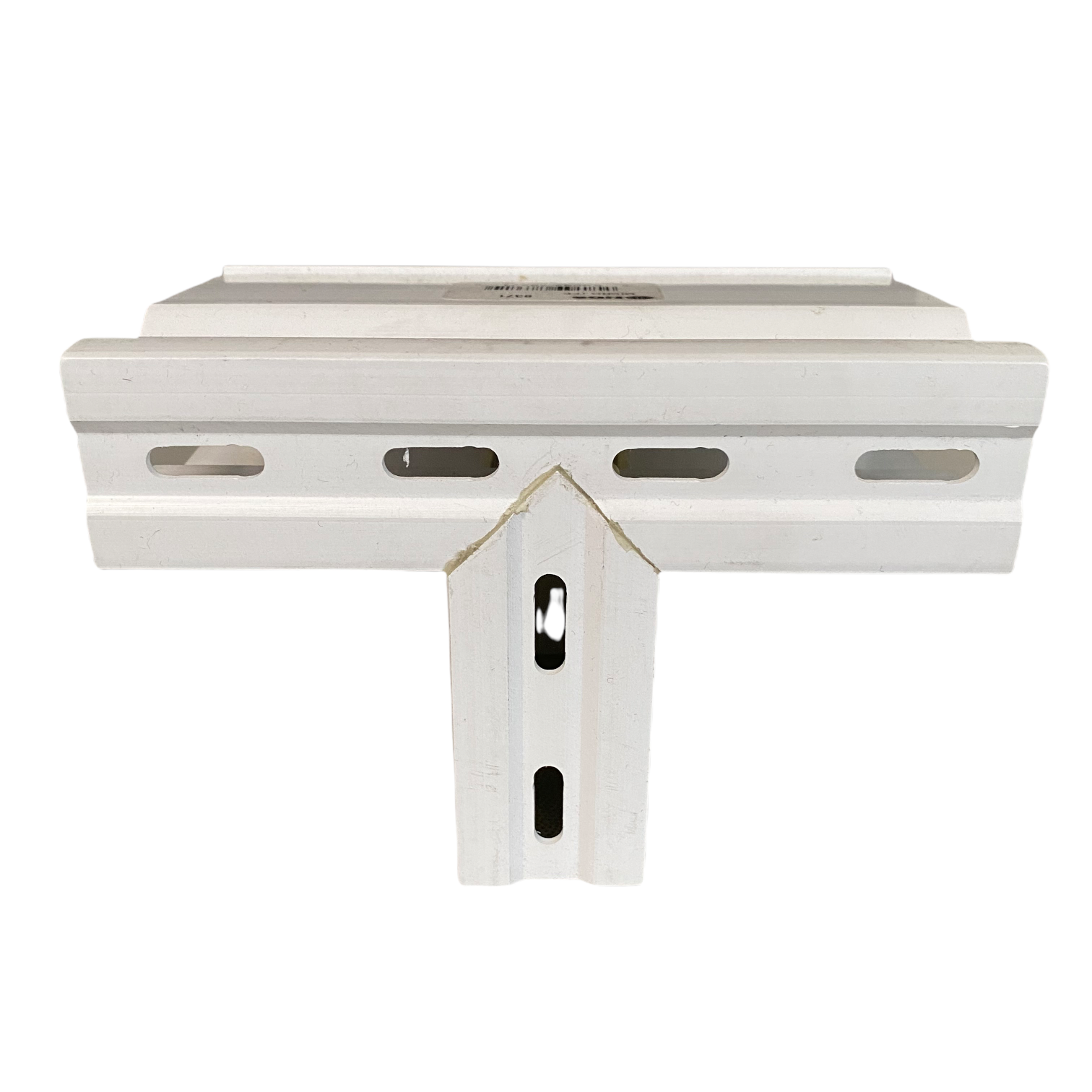

NDS 8371 Micro Channel Tee in white PVC, front-angle view showing integrated recessed grate and inlet profile (product photo).

NDS 8371 Micro Channel Tee - White PVC Integrated Grate

Brand: NDS
Save 25%
$38.85
$29.14
SKU 8371

Notify me when back in stock

The NDS 8371 Micro Channel Tee is a compact white PVC drainage fitting with an integrated recessed grate, engineered to capture light surface water on pool decks, patios and walkways. Part of NDS’s Micro Channel™ system, this tee joins channel sections to create a low-profile, corrosion-resistant drainage path that blends into finished surfaces.

  • Material: White polyvinyl chloride (PVC) treated with UV inhibitors to resist fading and cracking.
  • Integrated grate: One-piece channel and grate design provides a sleek, low-profile appearance and simple upkeep.
  • Channel width: 1-1/4 in. channel designed for light flows; ideal for pedestrian areas, pool surrounds and patios.
  • Load rating: Class A (pedestrian use up to 60 psi); not recommended for vehicular traffic.
  • Installation: Connects to Micro Channel sections using couplings and solvent-weld PVC glue; cleanouts provide interior access for maintenance.

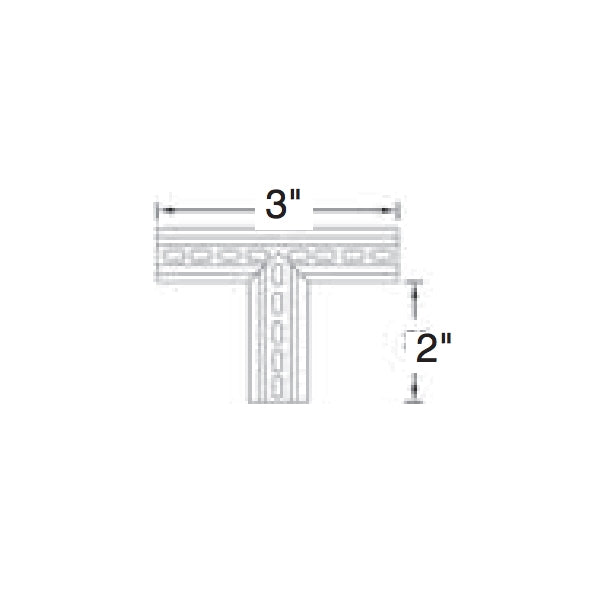

  • Dimensions: Compact tee measures approximately 3.75 in. long x 2 in. wide and is lightweight for easy handling.

Manufactured in the USA, the 8371 tee is a low-maintenance, corrosion-resistant solution for directing surface runoff. Consult the NDS Micro Channel technical specifications and product literature for full installation details, compatible accessories and flow capacity data.

Reviews

Frequently Asked Questions

What material is the 8371 Micro Channel Tee made from?
The 8371 is molded from white PVC treated with UV inhibitors for fade and crack resistance, part of the NDS Micro Channel line.
How is the Micro Channel Tee installed with other sections?
Sections connect with Micro Channel couplings and are solvent-welded using PVC glue; cleanouts let you access the channel for maintenance.
Is the 8371 suitable for vehicle loads or driveways?
No. Micro Channel products are Class A rated for pedestrian traffic (up to 60 psi) and are not intended for vehicular loads.
