Paige Electric 14/2X2500OR Maxi 2‑Wire Decoder Cable, Orange

Paige Electric 14/2X2500OR Maxi 2‑Wire Decoder Cable, Orange

Brand: Paige Electric
Sold out
$2,268.69
$1,701.52
SKU 14/2X2500OR

Notify me when back in stock

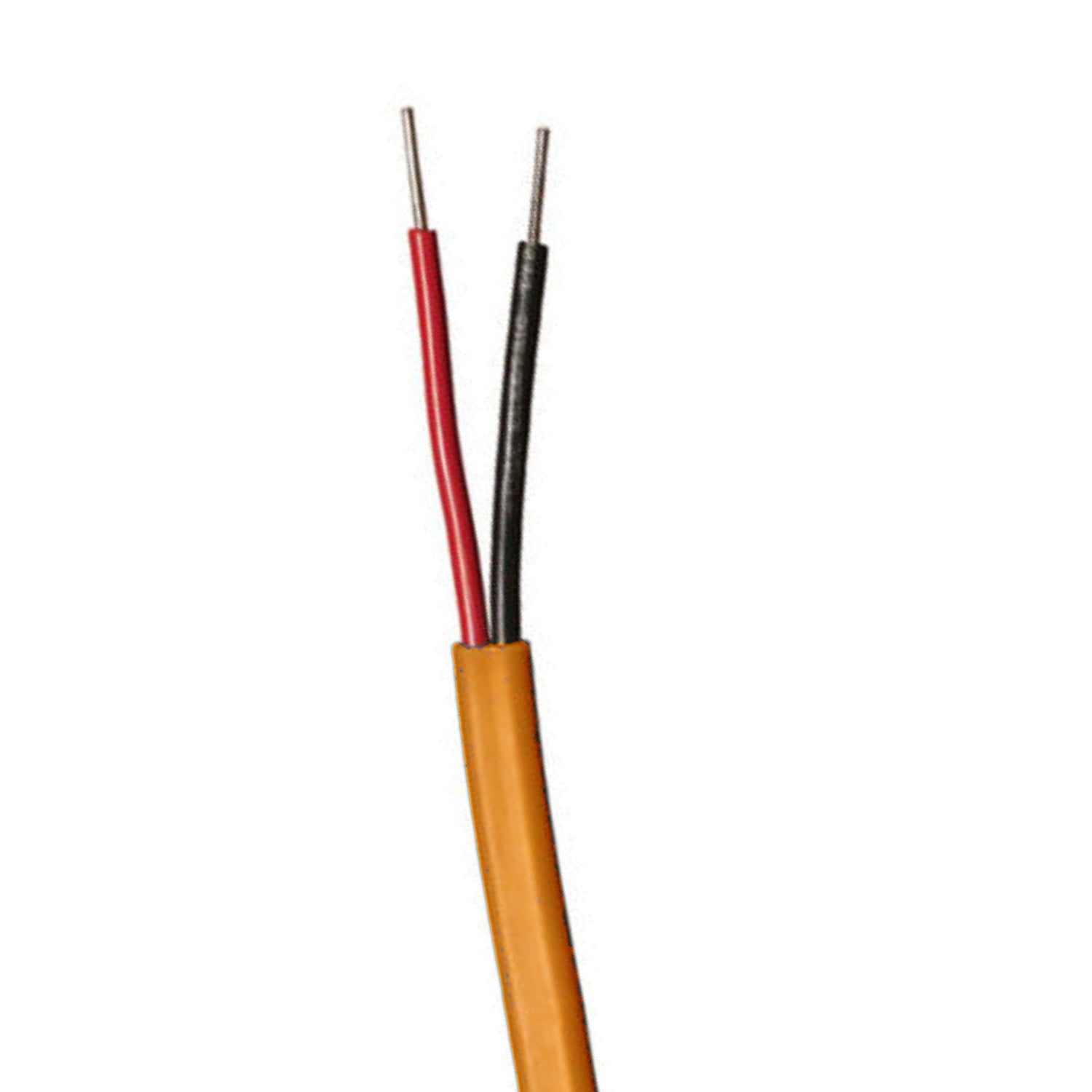

Durable 14 AWG Maxi 2‑wire decoder cable designed for irrigation and decoder wiring systems. Supplied on a 2,500-foot spool, this orange P7072D cable combines corrosion-resistant conductors, reliable insulation, and a rugged direct-burial jacket for long-lasting outdoor performance.

  • Conductor: Tin‑coated, soft‑annealed solid copper (meets ASTM B‑33) for corrosion resistance and reliable signal transmission.
  • Gauge & Configuration: 14 AWG, 2 conductors laid parallel — optimized for Maxi/2‑wire decoder and irrigation control systems.
  • Insulation: Polyvinyl chloride (PVC) insulation meeting UL requirements for Type UF/TWU, rated to 75°C.
  • Outer Jacket: High‑density polyethylene (HDPE) pressure‑extruded jacket for direct burial, chemical resistance, and sunlight resistance; minimum jacket thickness per P7072D.
  • Spool & Color: 2,500‑foot spool (2500') in orange for easy circuit identification on large projects.
  • Standards & Markings: Printed legend per Paige P7072D (direct burial, sunlight resistant); conductors listed as Type UF by UL/ETL/CSA and RoHS compliant.

This cable is intended for Maxi/2‑wire decoder systems and landscape irrigation installations where direct burial and chemical resistance are required. Refer to the P7072D spec sheet for splicing recommendations, jacket print legend, and detailed installation guidance before cutting or joining. For compatibility with specific decoder brands or controller systems, consult the controller manufacturer and the P7072D specification.

Reviews

Frequently Asked Questions

What is the conductor size and spool length?
This product is 14 AWG with two conductors and is supplied on a 2,500‑foot spool.
Is this cable suitable for direct burial and outdoor use?
Yes. The HDPE outer jacket is pressure‑extruded for direct burial and sunlight resistance; conductors are UF listed.
Which systems is this Maxi 2‑wire cable compatible with?
Designed for Maxi/2‑wire irrigation decoder systems and commonly used with Rain Bird and Hunter Maxi-style decoders.
How is the cable insulated and rated for temperature?
Conductors use PVC insulation meeting UL Type UF/TWU standards and are rated to 75°C; see P7072D for full ratings.
