Rain Bird PGA Series Valves

Plastic Industrial Irrigation Valves
Plastic globe/angle valve for residential/light commercial irrigation applications. The PGA Series offers versatility at an affordable price.
Globe and angle configuration for flexibility in design and installation. Rugged PVC construction for reliable operation. Normally closed, forward flow design. Double-filtered pilot flow to resist debris and clogging of solenoid ports. Slow closing to prevent water hammer and subsequent system damage. Manual internal bleed operates the valve without allowing water into the valve box.
Allows pressure regulator to be adjusted without turning the valve on at the controller. One-piece solenoid design with captured plunger and spring for easy servicing. Prevents loss of parts during field service. Non-rising flow control handle adjusts water flow as needed.
  • Rain Bird - 100PGA - 1" Plastic Globe Valve
    Save 36%
    Original Price $49.24
    Current Price $31.66
    Rain Bird

    Rain Bird - 100PGA - 1 in. Plastic Globe Valve

    In Stock (313)

    Plastic Globe Valve 1 in. NPT Pressure: 15 - 150 PSI Built for high-end residential and light commercial applications, Rain Bird® PGA series valv...

    View full details
    Original Price $49.24
    Current Price $31.66
    Save 36%
    In Stock (313)
  • Rain Bird - 150PGA - 1 1/2" Plastic Globe Valve
    Save 36%
    Original Price $134.78
    Current Price $86.64
    Rain Bird

    Rain Bird - 150PGA - 1 1/2 in. Plastic Globe Valve

    In Stock (191)

    Plastic Globe Valve 1 1/2" NPT Pressure: 15 to 150 PSI Built for high-end residential and light commercial applications, Rain Bird® PGA series va...

    View full details
    Original Price $134.78
    Current Price $86.64
    Save 36%
    In Stock (191)
  • Rain Bird - 200PGA - 2" Plastic Globe Valve
    Save 36%
    Original Price $188.53
    Current Price $121.20
    Rain Bird

    Rain Bird - 200PGA - 2 in. Plastic Globe Valve

    In Stock (83)

    Plastic Globe Valve 2 in. NPT Pressure: 15 to 150 PSI Built for high-end residential and light commercial applications, Rain Bird® PGA series val...

    View full details
    Original Price $188.53
    Current Price $121.20
    Save 36%
    In Stock (83)
  • Rain Bird - PRSDIAL - Pressure Regulating Adjustor
    Save 36%
    Original Price $123.40
    Current Price $79.33
    Rain Bird

    Rain Bird - PRSDIAL - Pressure Regulating Adjustor

    In Stock (53)

    Regulates outlet pressure at the valve Pressure: Up to 100 PSI Pressure Regulation: 15 to 100 PSI The PRS-Dial is an excellent means of regulatin...

    View full details
    Original Price $123.40
    Current Price $79.33
    Save 36%
    In Stock (53)
  • Globe and angle configuration for flexibility in design and installation.
  • Rugged PVC construction for reliable operation.
  • Normally closed, forward flow design.
  • Double-filtered pilot flow to resist debris and clogging of solenoid ports.
  • Slow closing to prevent water hammer and subsequent system damage.
  • Manual internal bleed operates the valve without allowing water into the valve box. Allows pressure regulator to be adjusted without turning the valve on at the controller.
  • One-piece solenoid design with captured plunger and spring for easy servicing. Prevents loss of parts during field service.
  • Non-rising flow control handle adjusts water flow as needed.
  • Accommodates optional, field-installed PRS-D pressure regulating module to ensure optimum sprinkler performance.
  • Accepts latching solenoid for use with Rain Bird battery-operated controllers.
  • Optional purple flow control handle for non-potable water applications PGA-NP-HAN1 (1" and 1 1/2"); PGA-NP-HAN2 (2").

  • Pressure: 15 to 150 psi (1,0 to 10,4 bar)
  • Flow without PRS-D option: 2 to 150 GPM (0,5 to 34 m3/h; 0,13 to 9,44 l/s)
  • Flow with PRS-D option: 5 to 150 GPM (1 to 34 m3/h; 0,32 to 9,44 l/s)
  • Temperature: Up to 110° F (43°C)
  • 24 VAC 50/60 Hz (cycles per second) solenoid power requirement:
    • 0.41 A (9.8 VA) inrush curren
    • 0.28 A (6.7 VA) holding current
  • Solenoid coil resistance: 24 Ohms, nominal

Dimensions

  • 00-PGA:
    7 1/4" x 5 1/2" x 3 1/4"
    (18,4 cm) x (14,0 cm) x (8,3 cm)
  • 150-PGA:
    8" x 6 3/4" x 3 1/2"
    (20,3 cm) x (17,2 cm) x (8,9 cm)
  • 200-PGA:
    10" x 7 3/4" x 5"
    (25,4 cm) x (23,5 cm) x (12,7 cm)

    Note: The PRS-D option adds 2" (5,1 cm) to the valve height

pga series valve pressure loss

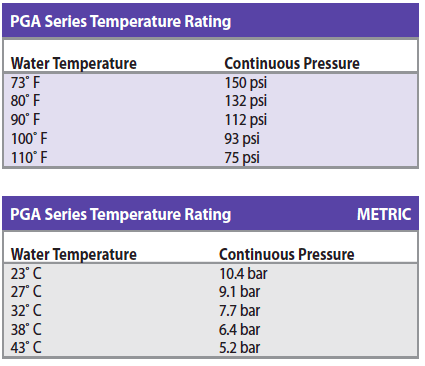

PGA series temperature rating
