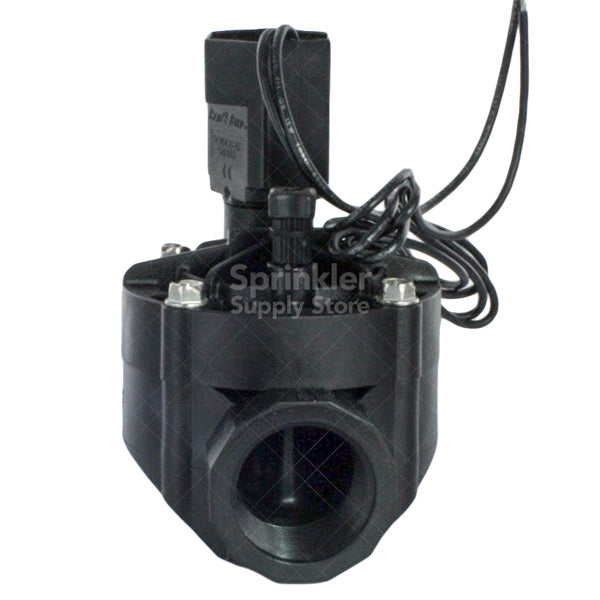

Front view of Rain Bird 100-HV-NPT 1-inch inline irrigation valve, black glass-filled polypropylene body with 24 VAC solenoid visible, product label.

Rain Bird 100-HV-NPT 1" Inline Electric Valve, Female x Female

Brand: Rain Bird
Save 28%
$27.56
$19.98
SKU 100-HV-NPT
In Stock (43)

Notify me when back in stock

The Rain Bird 100-HV-NPT is a 1" inline electric irrigation valve engineered for dependable residential and light-commercial sprinkler systems. Its compact, reverse-flow design and durable construction simplify installation and long-term maintenance.

  • Model: 100-HV-NPT — 1" female x female NPT threads.
  • Pressure Range: 15–150 PSI (1.0–10.3 bar).
  • Flow Range: 0.2–30 GPM (0.05–6.82 m3/h); for flows below 3 GPM (0.68 m3/h) use a 200-mesh filter upstream.
  • Electrical: 24 VAC solenoid (50/60 Hz); inrush ~0.290 A, holding ~0.091 A; coil resistance 70–85 Ω.
  • Materials: Glass-filled polypropylene body, Buna‑N diaphragm with self-cleaning pilot filter, stainless steel spring.
  • Design & Maintenance: Reverse-flow, normally closed design with internal and external bleed for spray-free manual operation and easy flushing.
  • Compatibility: Works with any standard sprinkler timer; multiple fitting types (including BSP) available in select models.

Rain Bird HV valves are supported by detailed technical documents and replacement parts (spec sheet, instruction manual, pressure-loss charts). See the included documents for dimension drawings, pressure-loss data, and step-by-step maintenance procedures.

Reviews

Frequently Asked Questions

What voltage does the 100-HV-NPT valve use?
The valve uses a 24 VAC solenoid (50/60 Hz). Inrush ≈0.290 A; holding ≈0.091 A; most standard controllers support it.
Can this valve be used for low-flow drip systems?
Yes—when a 200-mesh filter is installed upstream. For flows below 3 GPM the filter prevents pilot clogging and ensures reliable operation.
What thread type does the 100-HV-NPT have?
This model has 1" female NPT (F x F) threads. BSP and other fitting types are available in select configurations or as separate adapters.
How do I service or replace parts on an HV valve?
HV valves have an accessible bonnet and fewer screws for easier service. Use Rain Bird replacement parts and follow the included manual for step-by-step guidance.
