Close-up of Rain Bird XS090 Xeri-Spray quarter-circle micro-spray showing adjustable cap and 10-32 threaded inlet for secure installation.

Rain Bird XS090 Xeri-Spray - 90° Quarter-Circle Adjustable Radius

Brand: Rain Bird
Save 44%
$4.21
$2.37
SKU XS090
In Stock (197)

Notify me when back in stock

The Rain Bird XS090 Xeri-Spray is a quarter-circle micro-spray nozzle engineered for precise, low-volume irrigation. It delivers a uniform, fan-shaped spray that is ideal for ground cover, mass plantings, annual flower beds, and container plantings. The compact design and adjustable radius let you tailor coverage while conserving water.

  • Adjustable radius: Set flow and distance by turning the integral cap or ball valve for fine-tuned coverage.
  • Quarter-circle pattern (90°): Designed to water corners, beds, and border plantings with consistent distribution.
  • 10-32 threaded inlet: Fits 10-32A adapter, XBA-1800 Xeri-Bubbler adapter, and PFR-12 PolyFlex riser for rapid installation.
  • Wide operating range: Effective across typical micro-spray pressures (nominal 10–30 psi) and variable flow rates suitable for low-volume systems.

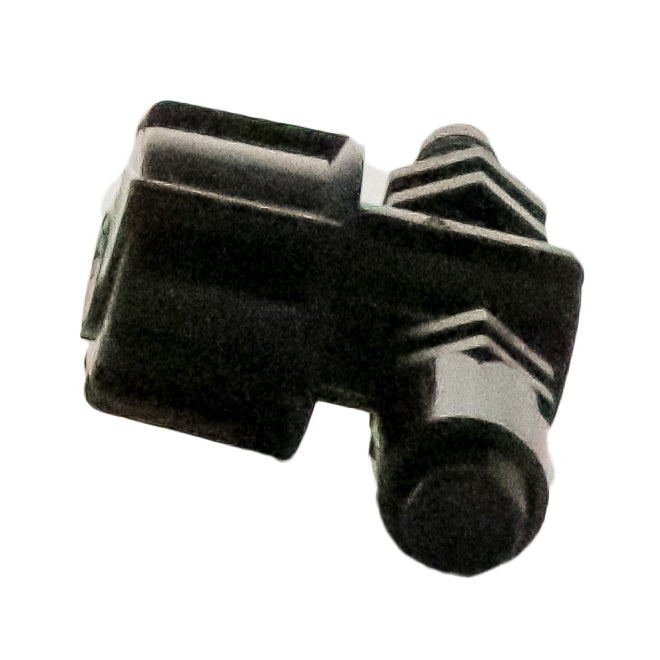

  • Easy maintenance: Cap unscrews for quick cleaning and debris removal, reducing clog issues in fine irrigation systems.
  • Applications: Best for ground cover, mass plantings, annuals, and containers where uniform, low-volume coverage is required.

Compact and reliable, the XS090 offers installers and gardeners a flexible micro-spray option that integrates with standard micro-irrigation fittings. Use it where controlled, uniform coverage is required and pair with compatible adapters or risers for secure mounting and precise positioning.

Reviews

Frequently Asked Questions

What inlet does the XS090 use and what adapters fit?
The XS090 uses a 10-32 threaded inlet and fits the 10-32A adapter, XBA-1800 Xeri-Bubbler adapter, and PFR-12 PolyFlex riser.
How do I adjust the spray radius on this nozzle?
Turn the integral cap or ball valve to increase or decrease flow and radius; adjustments are simple on-site without special tools.
What pressure range works best for Xeri-Spray nozzles?
Xeri-Spray nozzles perform across typical micro-spray pressures; aim for roughly 10–30 psi for reliable radius and flow control.
Is the XS090 suitable for containers and mass plantings?
Yes. The quarter-circle pattern and uniform emission make XS090 ideal for ground cover, mass plantings, annual beds, and container irrigation.
