Close-up of Rain Bird SA swing joint showing 1/2-inch threaded elbow, textured surface for grip, and flexible 6-inch swing arm design.

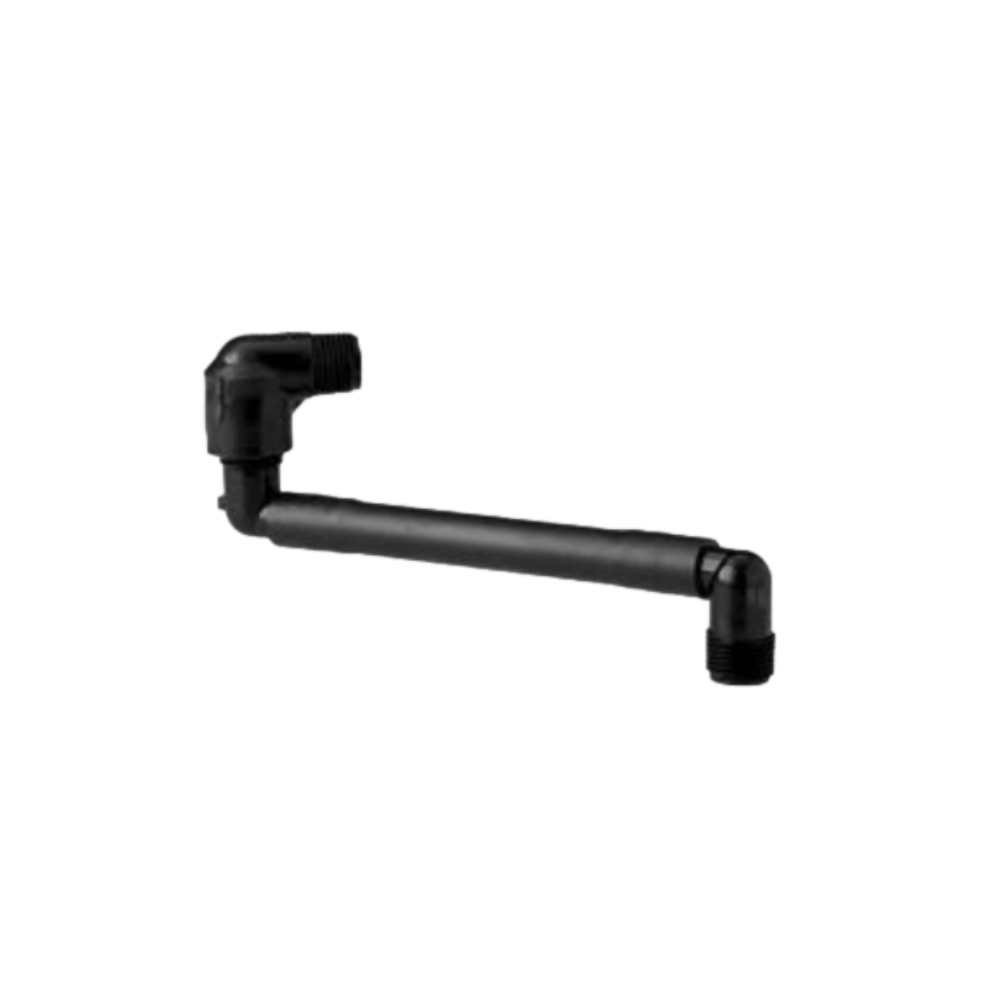

Rain Bird SA PVC Swing Joint Assembly 1/2 in x 6 in

Brand: Rain Bird
Save 63%
$3.82
$1.43
SKU RB-SA6050-SPEC
In Stock (430)

Notify me when back in stock

The Rain Bird SA PVC Swing Joint Assembly (1/2 in x 6 in) is a pre-assembled, flexible connection that links spray heads to lateral lines. Designed to reduce installation time and protect heads from damage by lawn equipment, it simplifies depth adjustment and alignment.

  • Pre-assembled 6-inch swing joint with 1/2 in inlet and outlet for fast installation.
  • 1/2-inch male pipe thread (MIPT/MPT) threaded elbows for standard spray head connections.
  • Operating pressure up to 80 psi (5.5 bar); surge pressure up to 240 psi (15.5 bar).
  • Maximum flow approximately 8 GPM (0.5 l/sec); rated for temperatures up to 110°F (43°C).
  • Flexible design prevents head and pipe breakage when run over and allows easy grade adjustment.
  • Textured surface and kink resistance improve handling during installation and in wet conditions.

Ideal for contractors and homeowners installing or servicing irrigation systems, the SA assembly delivers reliable performance and saves labor on repairs. Use with compatible Rain Bird spray heads and spiral barb fittings as specified.

Reviews

Frequently Asked Questions

What size and thread type does this swing joint use?
This SA assembly uses 1/2 in inlet/outlet with 1/2-inch male pipe threads (MIPT/MPT) and a 6 in swing arm.
How much pressure and flow can it handle?
Rated to 80 psi operating pressure, 240 psi surge, with maximum flow about 8 GPM (0.5 l/sec).
Will this prevent damage from lawn equipment?
Yes. Its flexible, pre-assembled swing design lets heads move and reduces breakage when struck by equipment.
How should I install it with spray heads?
Connect the 1/2 in MIPT elbow to compatible spray heads or spiral barb fittings; adjust swing arm to set head depth before backfilling.
