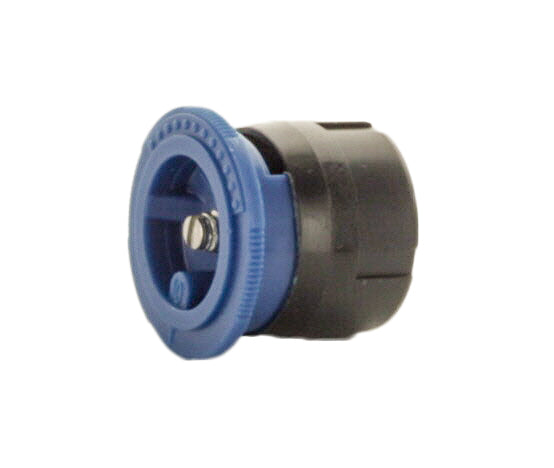

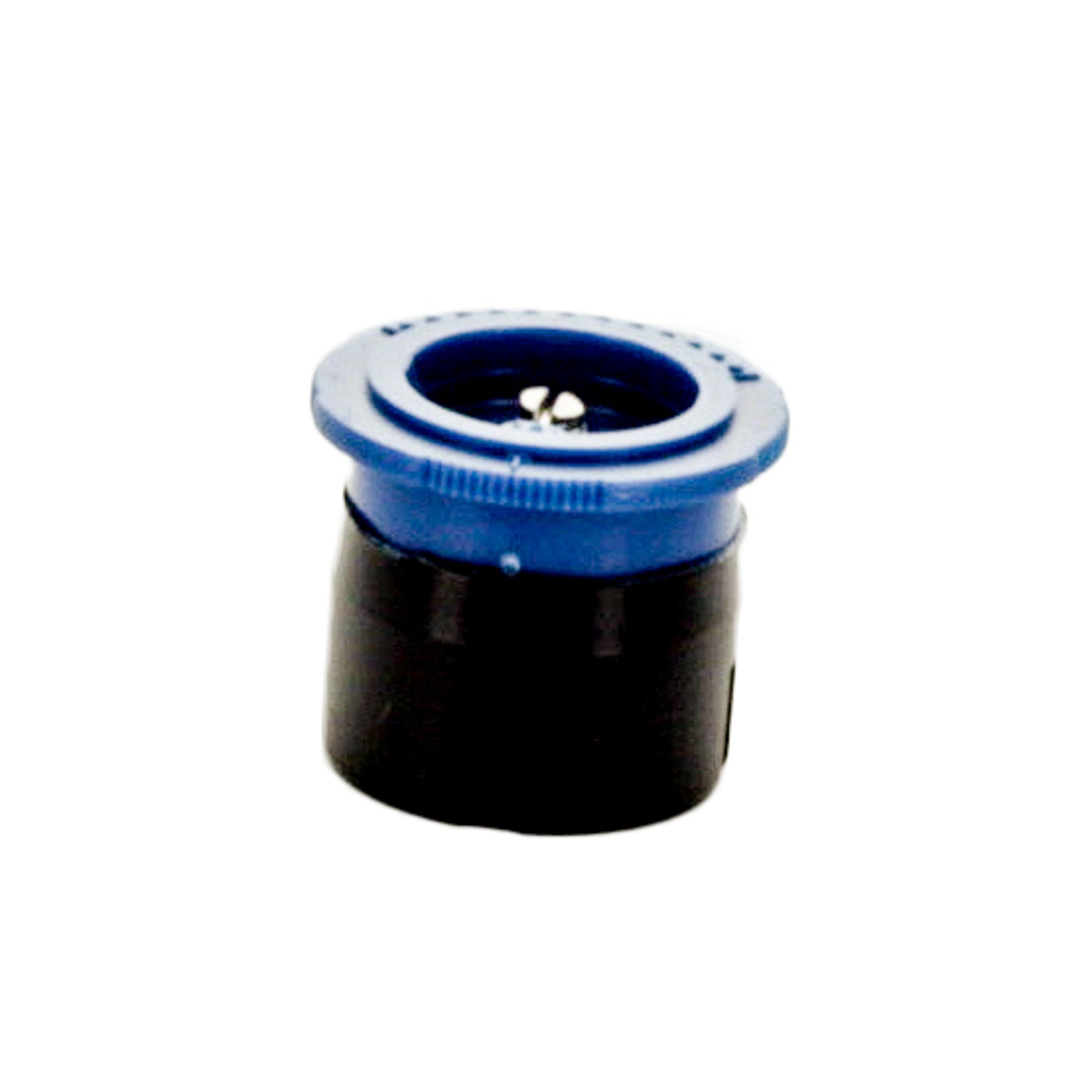

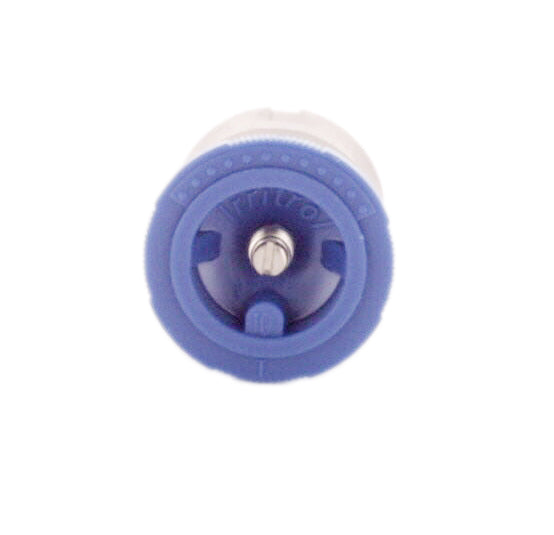

Irritrol IPN-10T I-PRO 10 ft 120° Fixed Nozzle w/Filter

Irritrol IPN-10T I-PRO 10 ft 120° Fixed Nozzle w/Filter

Brand: Irritrol
Save 62%
$3.78
$1.42
SKU IPN-10T

Notify me when back in stock

The Irritrol IPN-10T I-PRO fixed nozzle delivers matched precipitation-rate performance for efficient, uniform irrigation at a 10 ft radius and 120° arc. Built with an integrated filter and ribbed edge for easy handling, the IPN-10T is color-coded blue for quick radius identification and is female-threaded for compatibility with any male-threaded riser.

  • 10 ft radius; 120° fixed arc; 12° trajectory for consistent throw and coverage.
  • Matched Precipitation Rate (MPR) design promotes even water distribution and reduces runoff.

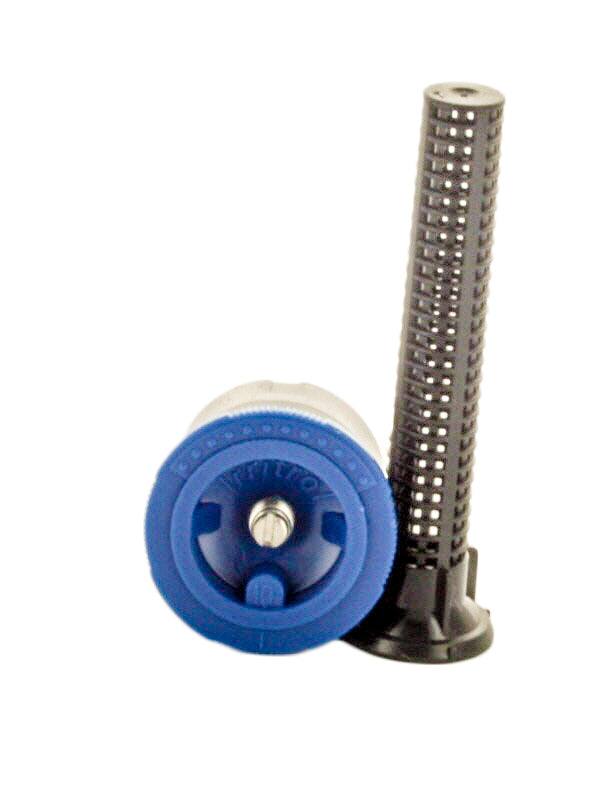

  • Integrated filter protects against debris; female 1/2" thread fits standard male risers.
  • Color-coded blue top for quick identification; ribbed-edge design for a non-slip grip during installation.
  • Recommended operating pressure: 20–50 psi; maximum operating pressure: 75 psi. Low-flow rates allow more sprinklers per zone.
  • Stainless steel radius adjustment screw allows up to 25% in-field reduction; backed by a 5-year warranty.

Ideal for residential and commercial spray systems, the IPN-10T installs easily in Irritrol spray heads or any industry-standard male-threaded riser. See product documentation for performance charts and pressure-to-radius tables.

Reviews

Frequently Asked Questions

What inlet thread size does the IPN-10T use?
The IPN-10T features a 1/2" female thread compatible with standard male-threaded risers for easy installation.
What operating pressure gives best performance for this nozzle?
Recommended operating pressure is 20–50 psi (maximum 75 psi). Optimal uniformity is typically around 30–40 psi.
How do I reduce the nozzle radius in the field?
Use the stainless-steel radius adjustment screw to reduce radius up to 25% in the field; adjust incrementally and test the spray.
Does the IPN-10T include a filter and warranty?
Yes. The IPN-10T includes an integrated filter to resist debris and is backed by a 5-year manufacturer warranty.
