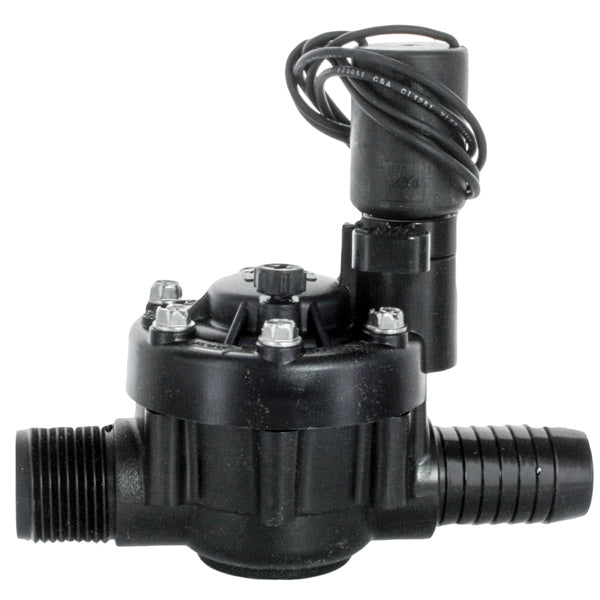

Toro TPV100MB 1-inch male-by-barb irrigation valve angled view showing solenoid, PVC body and inlet barb connections, on white background (product photo).

Toro TPV100MB 1" Inline Irrigation Valve, Male x Barb

Brand: Toro
Sold out
$36.87
$26.73
SKU TPV100MB

Notify me when back in stock

The Toro TPV100MB 1" inline irrigation valve is a rugged, debris-resistant control valve engineered for residential and commercial irrigation systems. It pairs reliable solenoid actuation with Toro's patented DBS Technology™ to maintain operation in recycled or debris-laden water and high-debris environments.

  • Flow range: 0.38–151 L/min (0.1–40 GPM) — suitable for drip systems through high-flow zones.
  • Connections: 1" Male inlet x barb outlet for quick tubing and hose attachments.
  • Durable construction: PVC body with a Santoprene® double-beaded diaphragm for chemical resistance and long service life.
  • Debris-resistant design: Patented DBS (Debris Bypass System) prevents common blockage issues in dirty-water applications.
  • Control & service: Optional flow control, removable flow-control handle, internal/external manual bleed, and captured fasteners for field servicing.
  • Electrical: Encapsulated solenoid (standard 24 VAC) with low inrush and hold current characteristics for reliable cycling.
  • Ratings & warranty: Operating pressure to 175 psi (12.1 bar), burst safety rating ~1000 psi (69 bar). Backed by a 5-year Toro warranty.

Designed for professional installers, the TPV100MB fits varied site needs and is serviceable in the field. Consult the TPV Series installation manual and performance chart for exact sizing, electrical specs, and installation best practices before specifying.

Reviews

Frequently Asked Questions

What pipe sizes and connection types does the TPV100MB support?
The TPV100MB uses a 1" connection with a male inlet and barb outlet; it fits common 1" tubing and threaded adapters.
How does DBS Technology™ help in dirty water systems?
DBS (Debris Bypass System) keeps debris away from the orifice so the valve continues to operate reliably in recycled or sediment-laden water.
What are the electrical requirements for the TPV100MB valve?
TPV series valves ship with an encapsulated solenoid (standard 24 VAC). Refer to the TPV performance sheet for exact inrush and hold currents.
