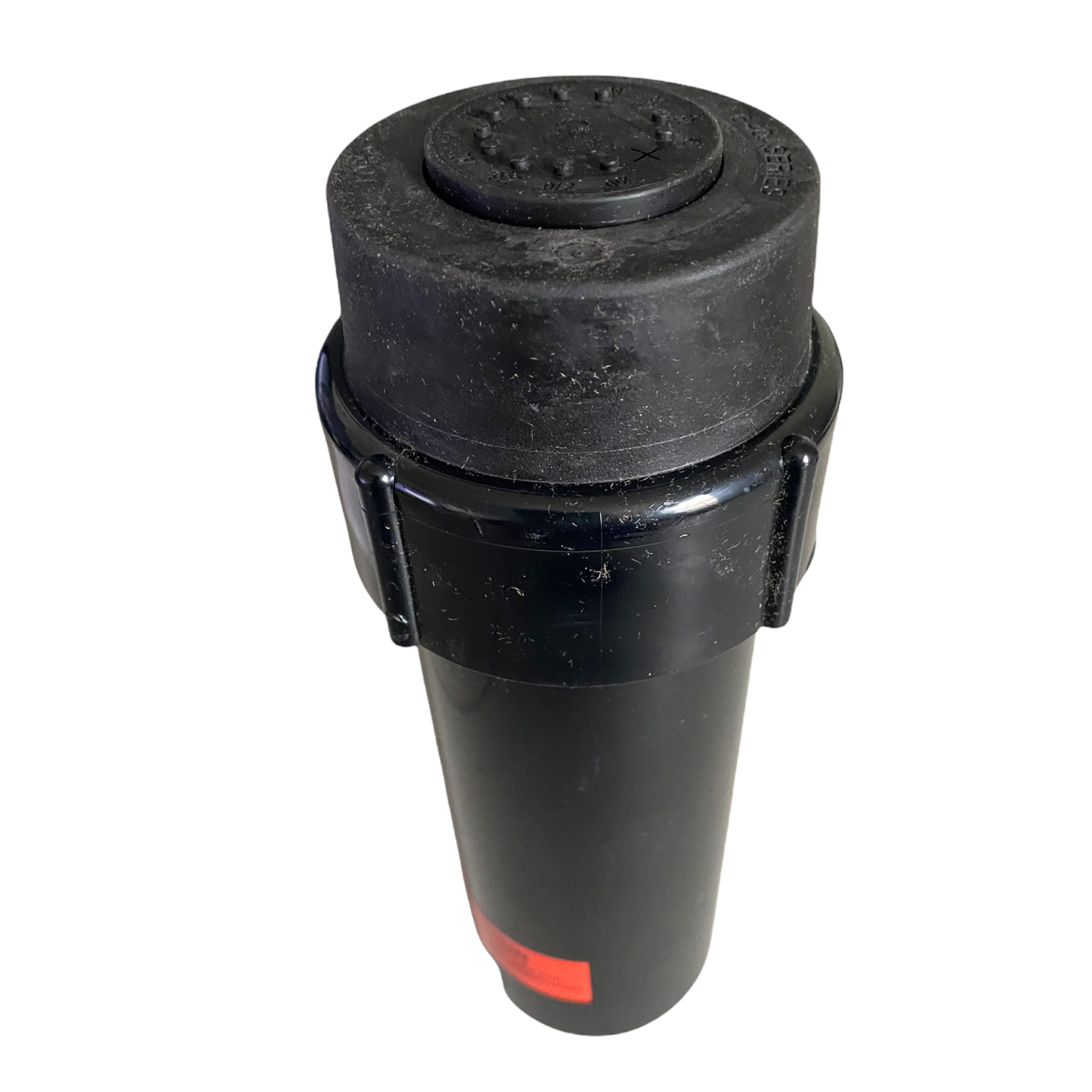

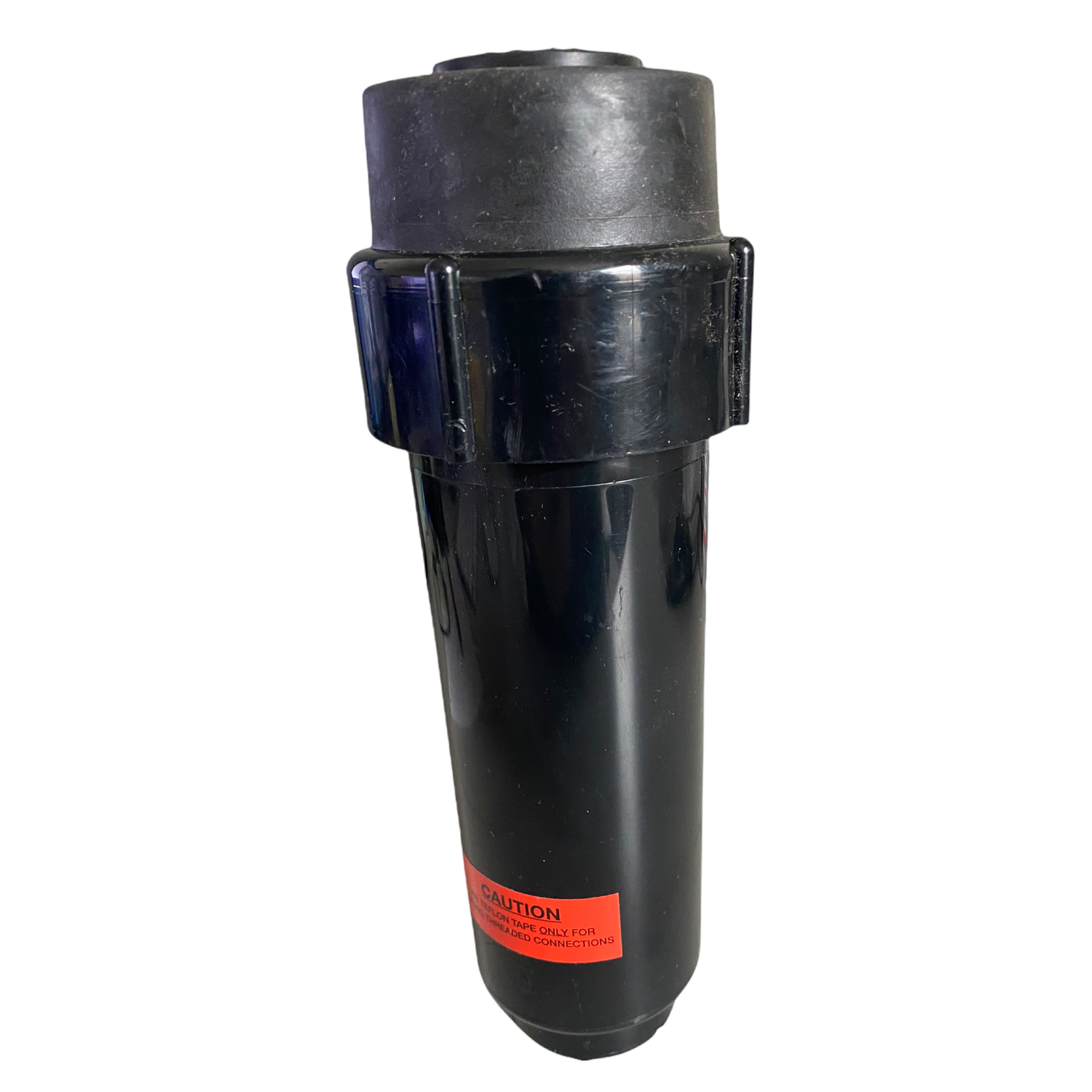

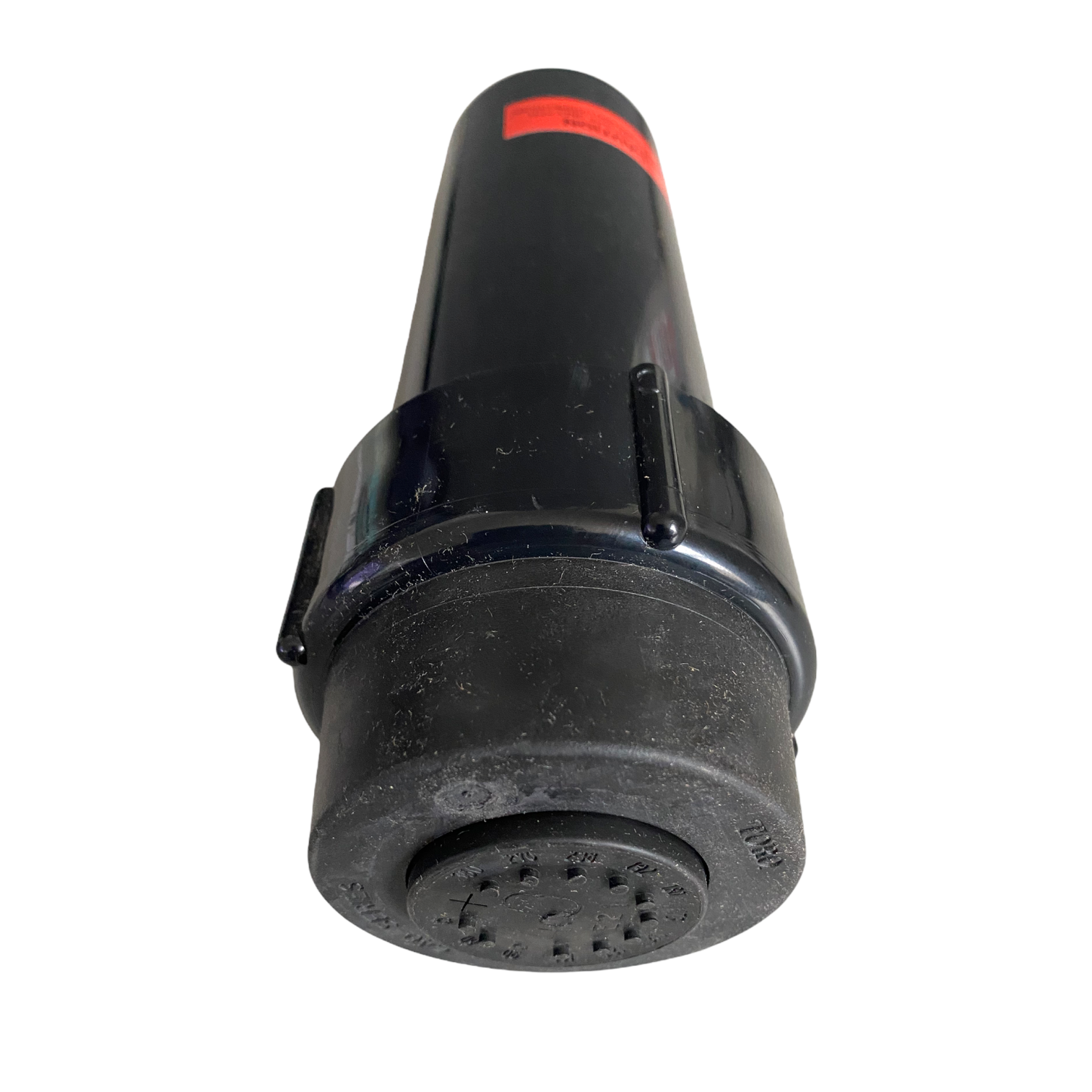

Toro 640 Pop-up Rotor, 360° Arc, #44 Nozzle, Check-O-Matic

The Toro 640 Pop-up Rotor with #44 nozzle and Check-O-Matic is a heavy-duty commercial rotor engineered for athletic fields and large turf areas. Its gear-drive design, stainless-steel retraction spring and durable construction deliver reliable, long-life performance under demanding use.

• Wide coverage: full 360° arc with nozzle #44 producing approximately 47–67 ft (14.3–20.2 m) radius; flow varies by pressure (about 6.0–25.0 GPM).
• Pressure and performance: recommended operating pressure 40–90 psi (2.8–6.2 bar); maximum 100 psi (7 bar); trajectory approximately 27° for consistent distribution.
• Durable construction: stainless-steel encased nozzle and drive assembly, brass components, engineering-grade plastics, and a standard rubber cover to minimize impact damage.
• Check-O-Matic: integrated check valve prevents low-head drainage and keeps laterals charged, reducing water waste and maintaining system pressure.

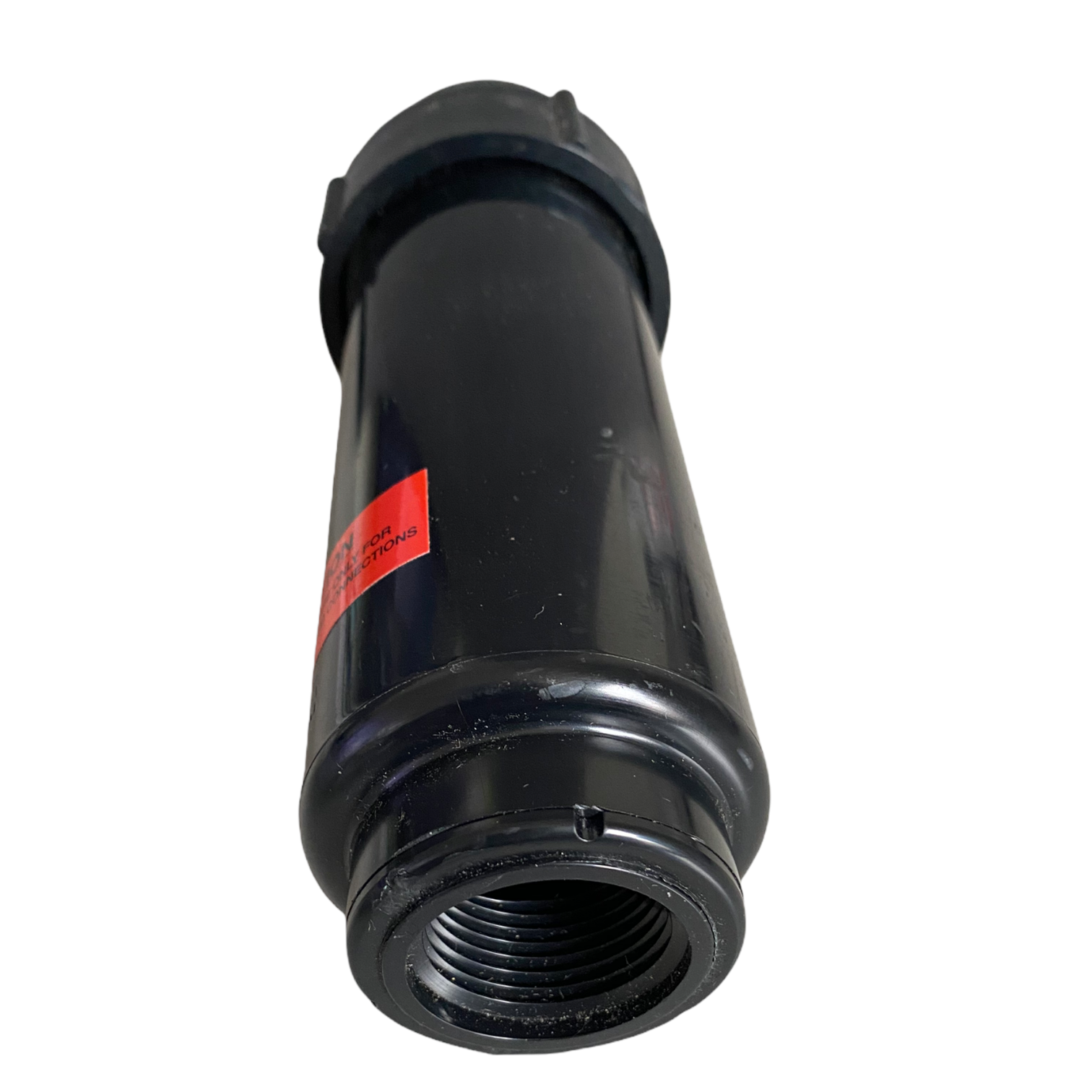

• Dimensions & connections: pop-up to nozzle height 2 3/8 in (60 mm); 1" female-thread inlet; compact exposed surface for near-flush installations.
• Serviceability & warranty: replaceable nozzle and stator assemblies simplify maintenance; 5-year warranty on select models—refer to Toro documentation for specifics.

Downloadable resources including the 640 Series sell sheet, installation and service instructions, and nozzle performance charts are available to help specify spacing and flow for sportfields and commercial turf. Consult Toro technical literature or your local dealer for full performance tables and installation guidance.
