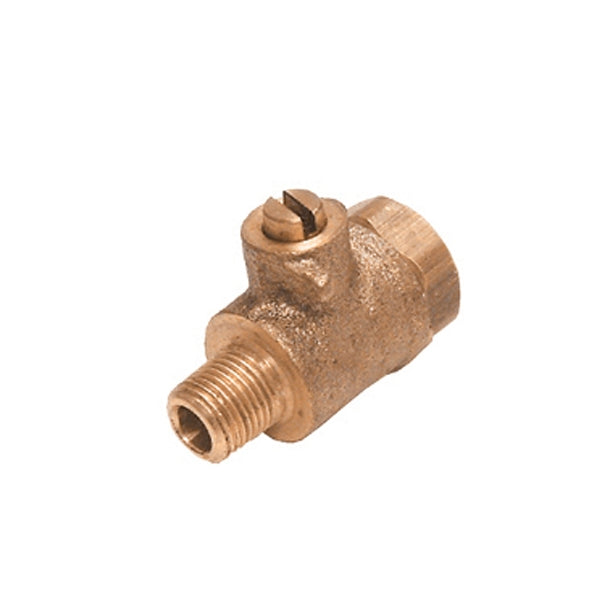

Wilkins 14-860XL 1/4" Ball Test Cock, MNPT x FNPT, Lead-Free

Wilkins 14-860XL 1/4" Ball Test Cock, MNPT x FNPT, Lead-Free

Brand: Zurn Industries, LLC
Save 25%
$92.94
$69.71
SKU 14-860XL

Notify me when back in stock

The Zurn Wilkins 14-860XL resilient-seated ball type test cock provides a reliable test port for backflow preventers. Designed for professional plumbing use, the 860XL accepts a differential pressure gauge and offers durable, low-lead construction for code-compliant installations.

  • Type & Function: Resilient-seated ball type test cock used as a test port for attaching differential pressure gauges to backflow preventers.
  • Connections & Size: 1/4" MNPT (male) inlet x 1/4" FNPT (female) outlet — nominal 1/4" size for common backflow assemblies.
  • Material & Compliance: Cast bronze construction, lead-free and certified to NSF/ANSI 372 (low-lead compliant) for safe potable water applications.
  • Operation: Quarter-turn ball operation with screwdriver slot for simple actuation; allows secure, positive shutoff during testing.
  • Ratings & Dimensions: Typical maximum working pressure 300 psi WOG and maximum temperature around 180°F; body length approximately 1-5/8" (manufacturer specifications vary by variant).
  • Compatibility & Options: Built for use on Wilkins/Zurn backflow preventers; select variants or kits offer optional SAE flare fittings or threaded dust covers for hose hookup or protection.

Engineered for durability and field serviceability, the 14-860XL is a compact, code-friendly test cock that simplifies backflow testing and maintenance. See the manufacturer specification sheet for full dimensional drawings, materials, and installation guidance.

Reviews

Frequently Asked Questions

What size and connections does the 14-860XL use?
The 14-860XL is a 1/4" nominal test cock with 1/4" MNPT (male) inlet and 1/4" FNPT (female) outlet.
Is the 14-860XL suitable for potable water systems?
Yes. The unit is cast bronze and compliant with low-lead requirements (NSF/ANSI 372) for potable water installations.
What are the pressure and temperature limits?
Typical ratings are up to 300 psi WOG and a maximum operating temperature near 180°F; confirm on the specification sheet for exact values.
Can I attach standard test gauge hoses directly?
The 860XL provides MNPT/FNPT connections; select variants or adapters (SAE flare or dust-cover options) allow faster hose hookup when available.
