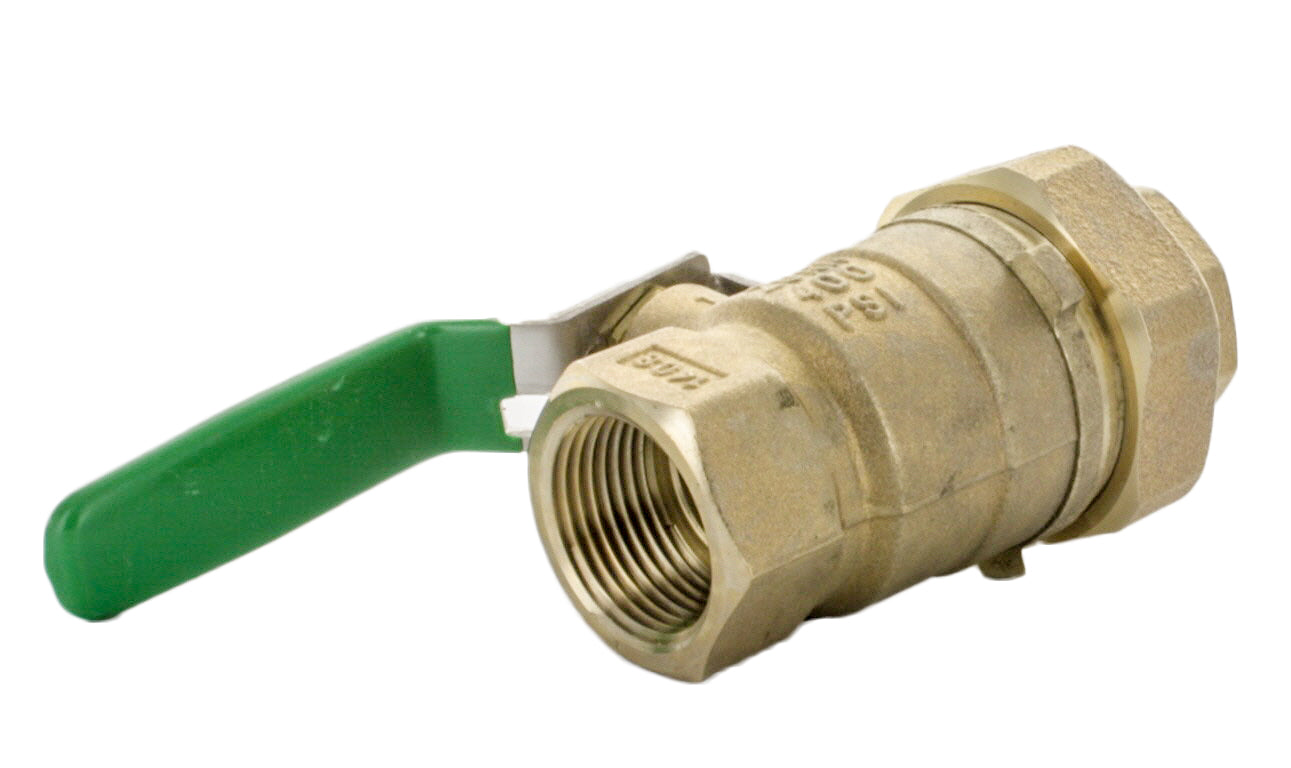

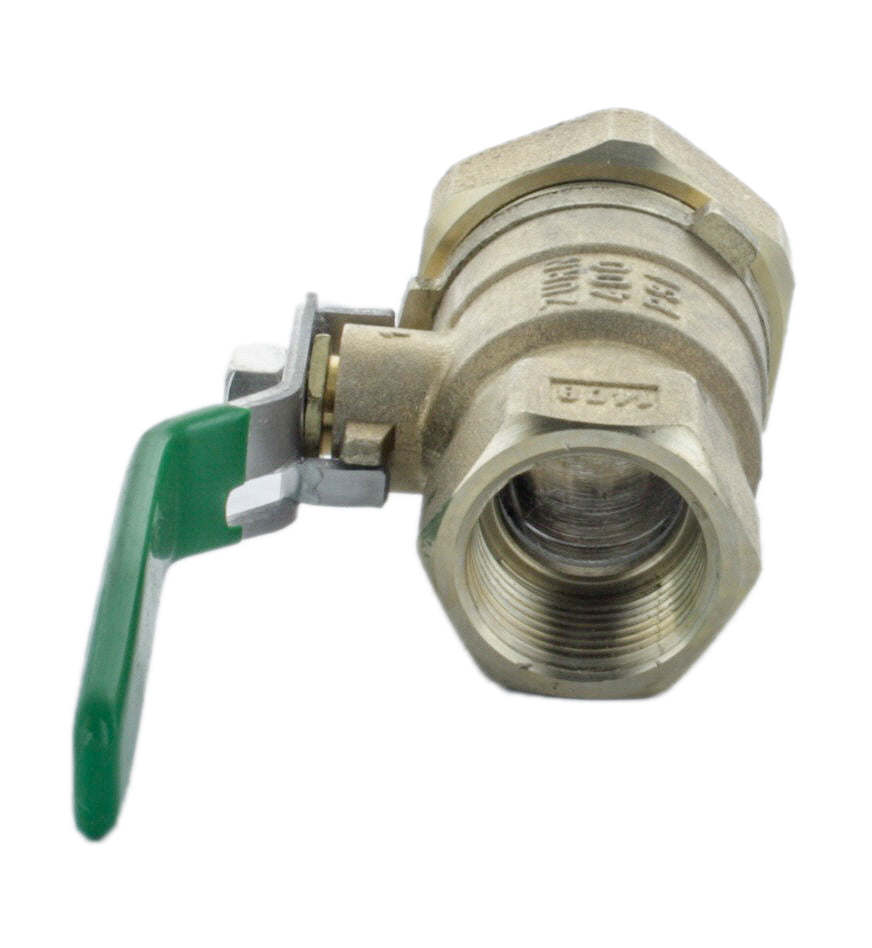

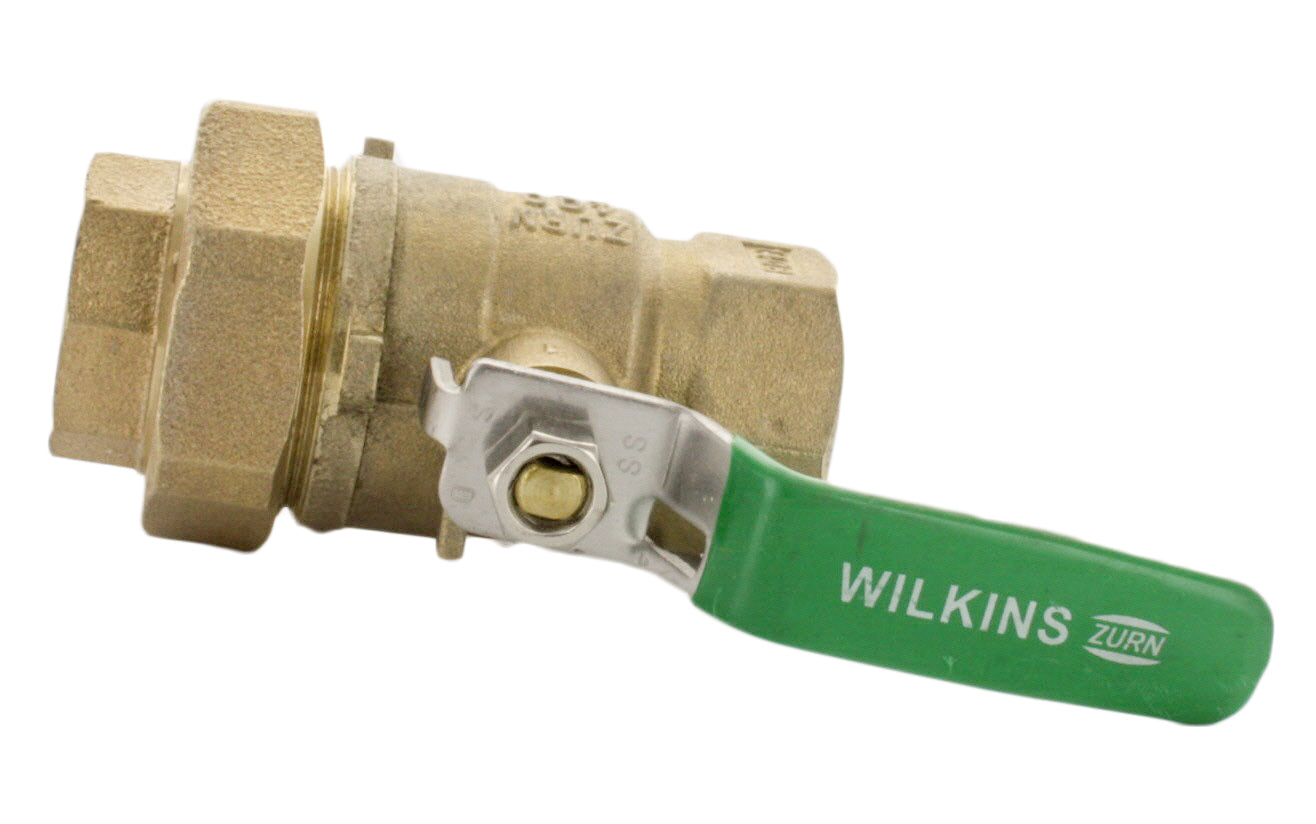

Wilkins 1-850UXL 1" Full-Port Lead-Free Bronze Ball Valve FNPT Union

Wilkins 1-850UXL 1" Full-Port Lead-Free Bronze Ball Valve FNPT Union

Brand: Zurn Industries, LLC
Save 25%
$283.06
$212.29
SKU 1-850UXL

Notify me when back in stock

The Wilkins 1-850UXL 1" full-port ball valve is a lead-free bronze shut-off used on small-diameter Wilkins backflow assemblies. Designed for dependable throttling and balancing of low-pressure steam, air, water and non-corrosive fluids.

  • Size: 1" FNPT union x FNPT; full-port flow for minimal pressure drop.
  • Material: Lead-free bronze body with chrome-plated low-lead brass ball.
  • Performance: 400 psi WOG pressure rating; temperature range 33°F to 350°F at 50 psi.
  • Operation: Quarter-turn lever, TFE seats and stainless-steel handle for corrosion resistance.
  • Certifications: Certified to NSF/ANSI 372 (low-lead) and suitable for potable systems where allowed.
  • Compatibility: Intended for use with Wilkins 975XL reduced-pressure backflow assemblies and similar models.

Documents: Specification sheet and installation resources available in the product documents. For technical questions or installation guidance, consult plumbing professionals or the manufacturer's documentation.

Reviews

Frequently Asked Questions

What size and connection types does this valve have?
1-inch FNPT union x FNPT configuration; full-port design reduces pressure drop and fits Wilkins small-diameter assemblies.
How hot and how much pressure can this valve handle?
Rated to 400 psi WOG and suitable from 33°F to 350°F at 50 psi—verify system limits before installation.
Is this valve lead-free and certified for potable use?
Yes — lead-free bronze construction and certified to NSF/ANSI 372 for low-lead compliance where allowed.
Can I use this valve with the Wilkins 975XL backflow preventer?
Yes. The 1-850UXL is designed for use with Wilkins 975XL reduced-pressure backflow assemblies.
