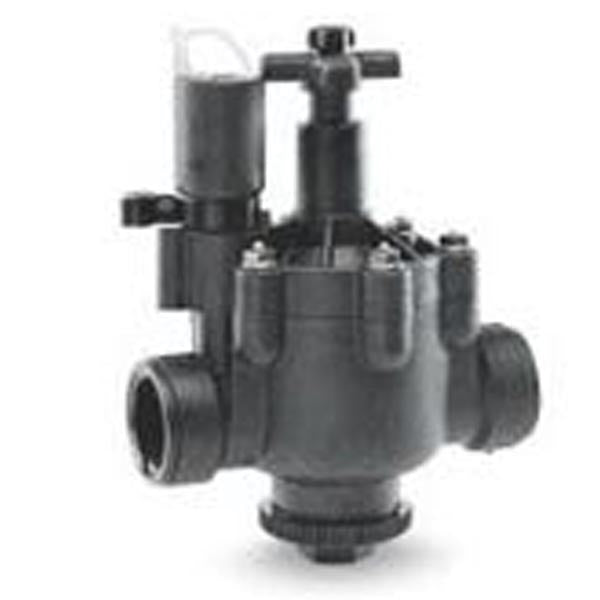

Irritrol 100P3 3-inch globe/angle irrigation valve, nylon-reinforced body, flow control stem visible and 24 VAC solenoid mounted on top

Irritrol 100P3 3" Globe/Angle Electric Valve with Flow Control

Brand: Irritrol
Save 24%
$581.62
$443.48
SKU 100P3

Notify me when back in stock

The Irritrol 100P3 (Century PLUS) is a heavy-duty 3" globe/angle irrigation valve engineered for reliable zone control in residential and commercial systems. Built with a nylon-reinforced body, stainless metering components, and a reinforced EPDM diaphragm, it combines durable construction with precise flow adjustment and serviceable control features.

  • Size & configuration: 3" globe/angle body with female threaded connections; compact footprint for inline or angle installations.
  • Flow & pressure: Wide flow range (approximately 5–300 GPM) and a service pressure capability up to 220 PSI for demanding applications.
  • Solenoid & electrical: Standard 24 VAC solenoid (inrush ≈ 0.4 A, holding ≈ 0.2 A) compatible with common irrigation controllers and impulse solenoid timers.
  • Metering & control: Built-in flow control and removable self‑cleaning metering system allow fine adjustment and reliable performance with recycled or dirty water.
  • Serviceability & protection: Internal and external manual bleed options, captive solenoid design, and an anti‑contamination option on select models for reclaimed-water use.
  • Optional accessories: Accepts OmniReg® modular pressure regulators for downstream pressure control; compatible retrofit and service parts available.

Dimensions for this model are approximately 10 3/4" H x 6 1/8" W x 8 1/4" D. The valve includes documentation for installation and maintenance; consult the included installation instructions and sell sheet before wiring, pressure-regulating, or commissioning the valve. For recycled‑water or high‑debris installations, consider the 102/102N anti‑contamination variants or the OmniReg pressure regulator for stable downstream pressure.

Reviews

Frequently Asked Questions

What solenoid voltage and current does the 100P3 require?
The standard solenoid requires 24 VAC. Typical inrush is about 0.4 A and holding current about 0.2 A; use a compatible irrigation controller output.
How do I mount and orient the 100P3 valve for installation?
This model is a globe/angle body with female threaded connections; mount to match your piping layout and follow the included installation instructions for proper flow orientation.
Can I add pressure regulation to this valve?
Yes. The 100 Series accepts the OmniReg modular pressure regulator (OMR‑30 or OMR‑100) to maintain consistent downstream pressure.
