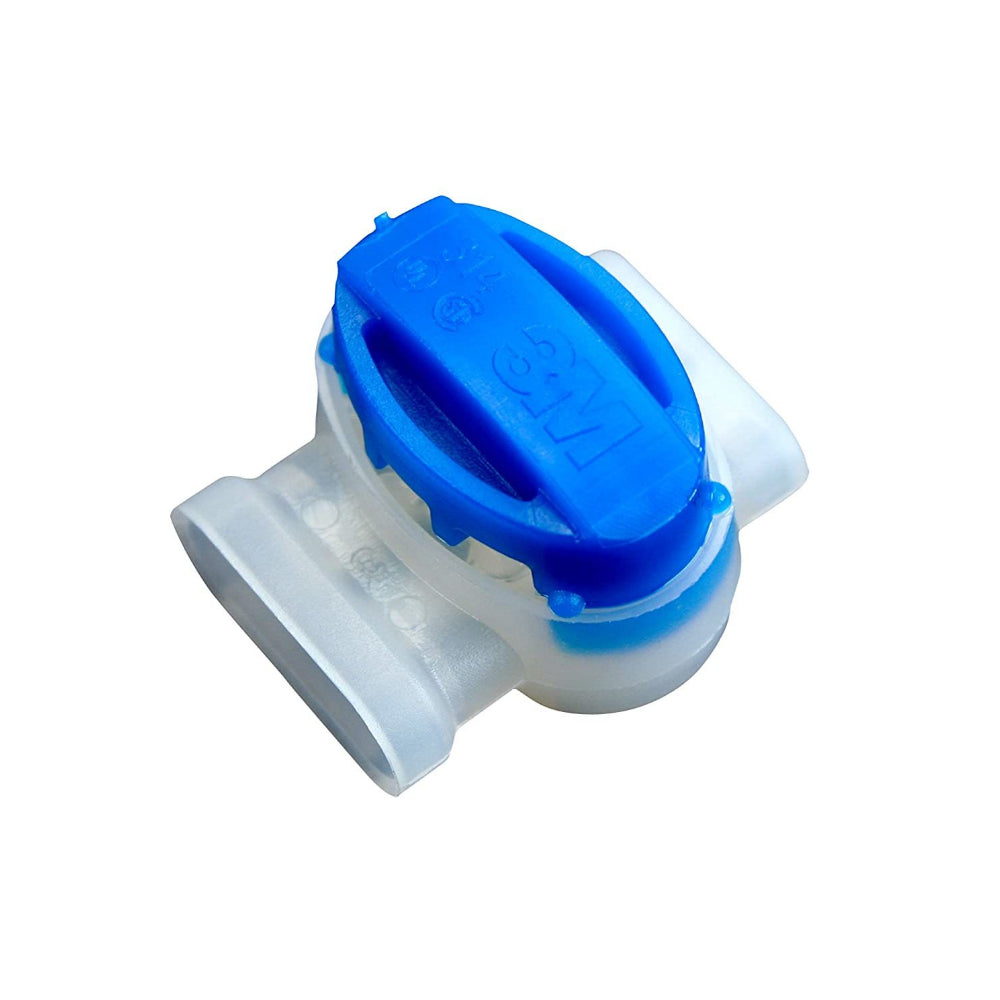

Close-up photograph of a single 3M Scotchlok 314 grease-filled IDC connector showing blue cap and white nylon body.

3M Scotchlok 314 Insulation Displacement Connector — 22–14 AWG

Brand: 3M
Save 25%
$3.82
$2.87
SKU 270317
In Stock (804)

Notify me when back in stock

The 3M Scotchlok 314 Insulation Displacement Connector provides a grease-filled, moisture-resistant pigtail connection for joining two or three insulated copper conductors. Its nylon-insulated body and tin-plated brass U-contact form a flame-retardant, corrosion-resistant splice that installs without stripping.

  • Wire range: Accepts 22–14 AWG solid or stranded copper conductors (0.5–1.5 mm²); maximum insulation diameter 3.8 mm (0.150").
  • Voltage & temperature: Rated 600V for building wire and 1000V for fixtures, luminaires and signs; temperature rating up to 105°C (221°F).
  • Construction: Grease-filled mineral oil EG-3 sealant; nylon insulator with blue cap and white body; tin-plated brass U-contact for reliable conductivity.
  • Installation: No stripping required—insert wires fully and snap cap closed. For best results use 3M crimping tool E-9BM or standard slip-joint pliers.
  • Certifications: UL listed, CSA certified and RoHS compliant.
  • Applications: Ideal for pigtails, sign and fixture wiring, building wire splices and low-voltage underground circuits when used within a protected enclosure.

Each unit is sold individually and is designed to provide a long-lasting, moisture-resistant seal in wet or damp environments. See the manufacturer's datasheet or installation instructions for full specifications and recommended practices.

Reviews

Frequently Asked Questions

What wire sizes does the 3M Scotchlok 314 accept?
Accepts 22–14 AWG solid or stranded copper conductors; maximum insulation diameter 3.8 mm (0.150").
How is the Scotchlok 314 installed—do wires need stripping?
No stripping required: insert unstripped wires fully and snap the cap closed. Use 3M E-9BM tool for extra security.
Is the connector suitable for outdoor or damp environments?
Yes. Grease-filled sealant and flame-retardant nylon provide moisture resistance; use inside a protected enclosure for best results.
