Calsense Two Wire Decoder | Select your Model
- Height: 1.4”
- Width: 3.3”
- Length: 4.0”
- Operating Temperature: -12° to 65°C (10° to 150°F)
- Max Voltage: 24-VAC
- 14-gauge (1.5 mm) solid copper, jacketed
- Paige® P7354D or Regency’s Hunter® Decoder Cable
- Wire Splices
- 3M™ Scotchcast™ Connector Sealing Pack 3570G-N
- Max Distance from Decoder to Solenoids

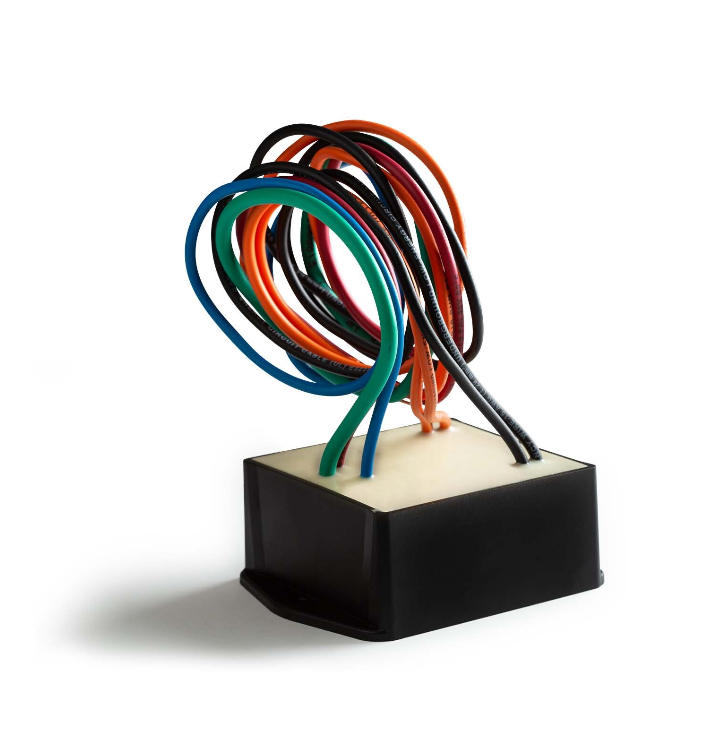

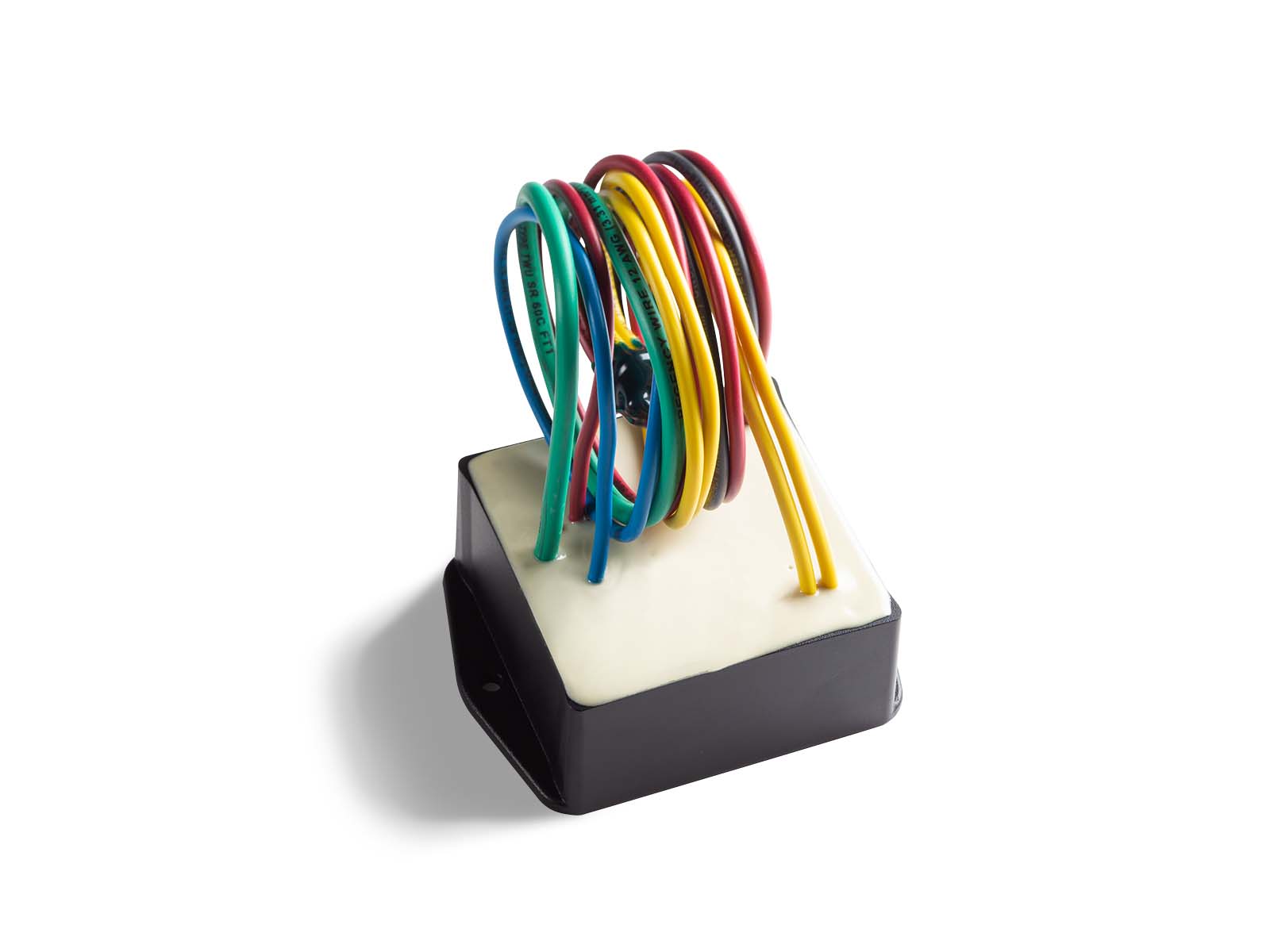

The Calsense 2-Wire POC Decoder.
Model CS-3W-POC operates a single master valve and flow sensor. A single controller can operate up to four Calsense POC Decoders, with a maximum of 12 points of connection in a chain of Calsense controllers using FLOWSENSE® technology. It is recommended that all wire runs between valves and Calsense 2‐Wire Decoders be direct pulls and has no splices except at the Calsense Decoder location.
- 100 ft., 14-gauge wire to Master Valve
- 20 ft., 14-gauge wire to Flow Meter
- Transient Protection
The Calsense 2-Wire 2‐Station Decoder.
Model CS-2W-2ST, operates up to 2‐solenoids using uniquely colored wires for each station. A single controller can operate up to 128 2‐wire stations, spread across a maximum of 70 physical Calsense 2‐Station Decoders. It is recommended that all wire runs between valves and Calsense 2‐Wire Decoders be direct pulls and has no splices, except at the Calsense 2-Wire Decoder location.
- Max Distance: 100 ft., 14-gauge wire
Soil Moisture Sensor Decoder
The Soil Moisture Sensor Decoder, model CS-2W-MOIST, measures the volumetric water content, temperature, and electrical conductivity of the soil. It also operates a single valve, eliminating the need for an additional Station Decoder. The combination of sensor/decoder comes standard with a 16-foot cable for proper moisture sensor placement and with the ability to wire one remote control valve to the 2-wire cable.
