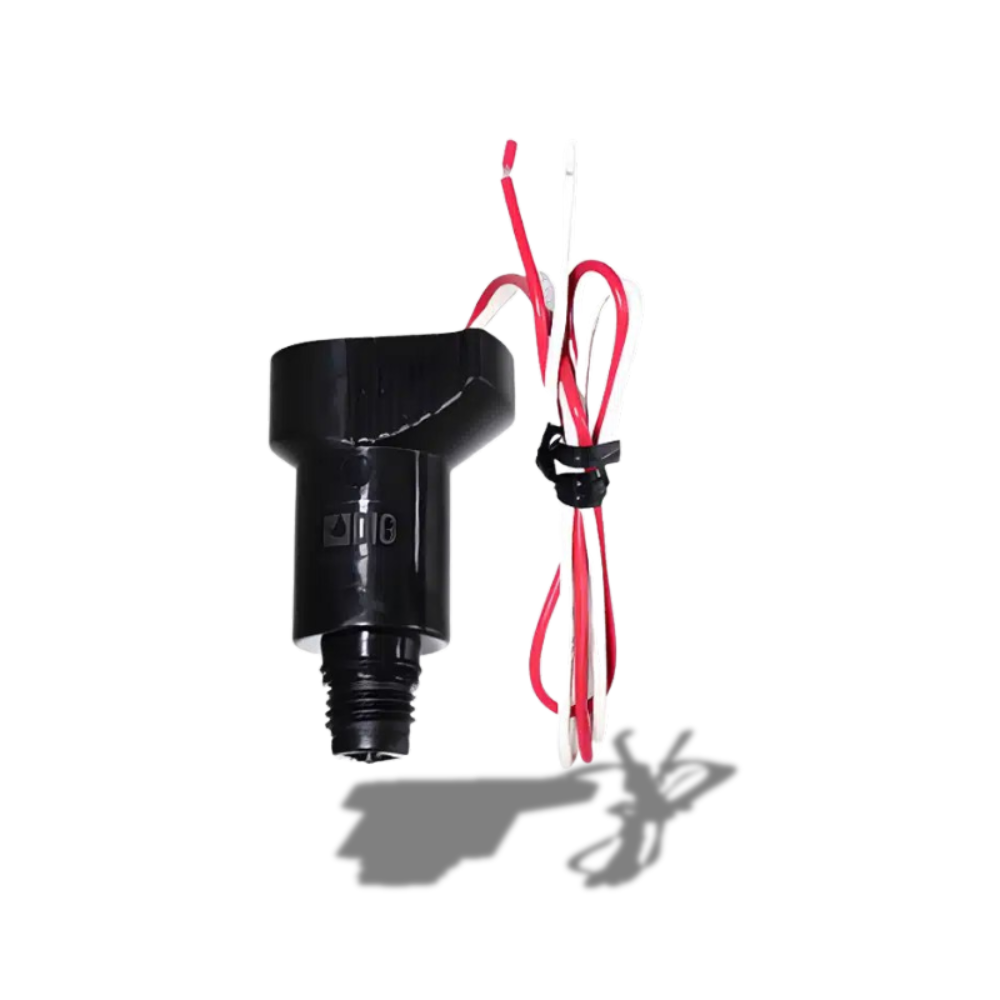

DIG LEMA1700S solenoid actuator with 11/16-12 thread, potted waterproof housing and two color-coded lead wires.

DIG LEMA1700S Power Solenoid Actuator — 11/16-12 Thread

Brand: DIG
Save 21%
$130.00
$103.11
SKU LEMA1700S
In Stock (13)

Notify me when back in stock

DIG LEMA1700S power solenoid actuator is a compact, waterproof, low-power DC solenoid engineered for use with LEIT system controllers. It provides reliable valve actuation through a captured-plunger design and sealed (potted) construction for long service life in outdoor irrigation applications.

  • Controller compatibility: Designed for use with LEIT 4000, LEIT X, and LEIT XRC controllers only.
  • Sealed construction: Potted, waterproof housing protects internal components from moisture and contaminants.
  • Thread and fittings: Standard 11/16"-12 UN solenoid thread; adapters sold separately to convert most brand-name valves.
  • Performance range: Operates across a 10–150 PSI (0.7–10.5 BAR) pressure range with a .065" (1.7 mm) control orifice.
  • Physical specs: Overall length 3.1" (7.9 cm); weight 5.3 oz (150 g); with adapter 5.6 oz (160 g).
  • Electrical & leads: Two color-coded lead wires (red and white), 18" (45 cm), UL 1015, AWG 16, 300V.
  • Operating temperature: Rated for 32°F to 150°F (3°C to 65°C).

Seven durable plastic adapters are available (sold separately) for easy installation and conversion to many brand-name valves. The LEMA1700S installs in place of the original solenoid and, when used with the appropriate adapter, converts existing valves for use with LEIT controllers. Refer to the included technical manual and assembly documents for torque, mounting, and wiring guidance before installation.

Reviews

Frequently Asked Questions

What controllers is this solenoid compatible with?
Compatible only with LEIT 4000, LEIT X, and LEIT XRC controllers. Confirm controller model before purchase.
How do I install the LEMA1700S with existing valves?
Remove the original solenoid and fit one of the seven adapters (sold separately) to convert most brand-name valves.
What electrical and temperature specifications apply to this actuator?
Uses UL 1015 lead wires, AWG 16, 300V, 18 in (45 cm). Operating temperature is 32–150°F (3–65°C).
What pressure range and orifice size does the solenoid support?
Rated for 10–150 PSI (0.7–10.5 BAR) with a .065" (1.7 mm) control orifice for reliable flow control.
