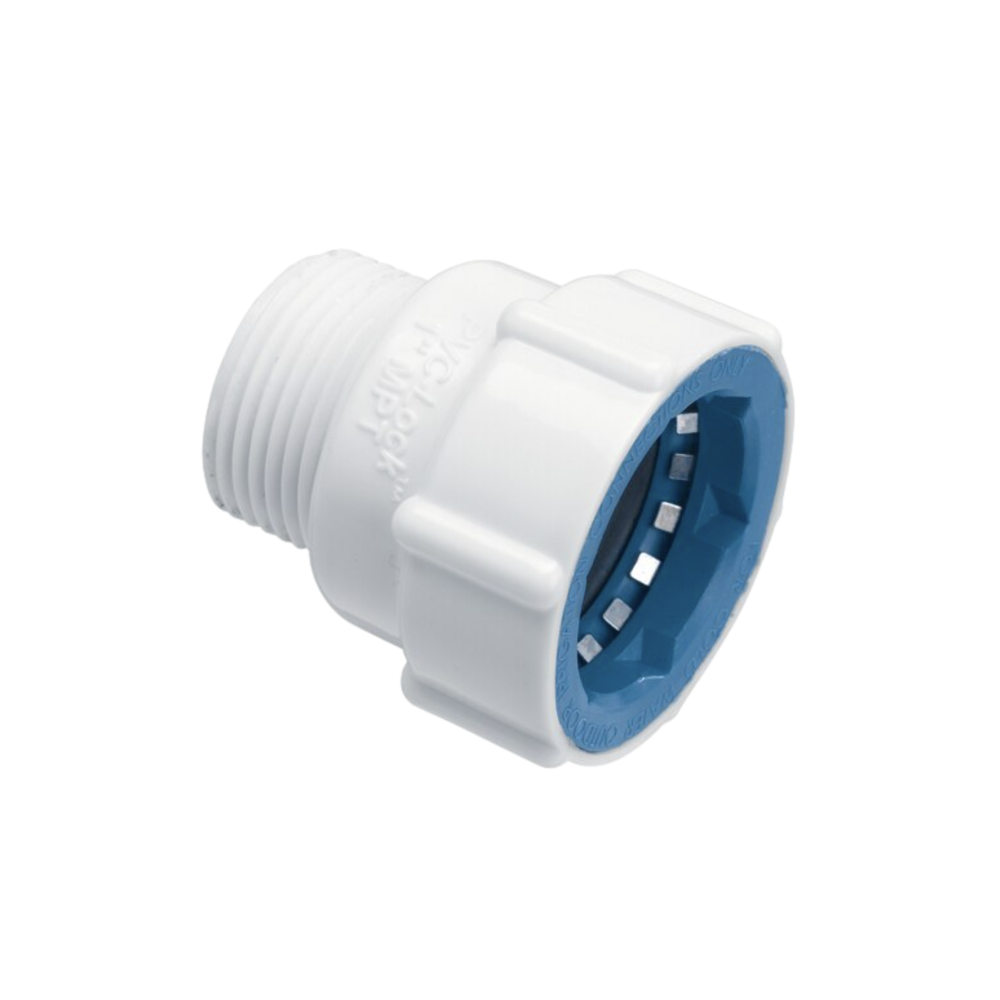

Hydro-Rain PVC-Lock Male Adapter PVCL x MIPT - Push-Fit

Hydro-Rain PVC-Lock Male Adapter (PVCL x MIPT) is a push-fit transition that connects Schedule 40/80 and Class PVC pipe directly to threaded irrigation components without glue or primer. The quick, chemical-free design speeds installations and lets systems be pressurized immediately.

• Push-and-Go, glue-free installation reduces setup time and eliminates solvent fumes.
• Durable UV-resistant ABS body with stainless-steel retainer ring and EPDM O-ring for a secure, leak-resistant seal.
• Push-fit socket accepts Schedule 40, Schedule 80 and Class PVC pipe from multiple brands.
• 360° swivel after installation allows easy orientation of threaded components.
• Rated for typical irrigation use up to 150 PSI working pressure; confirm requirements for your system.
• Removable and reusable with the PVC-Lock removal tool for onsite adjustments and repairs.
• Apply thread sealant tape to the male threads to ensure a watertight connection.

Available in 1/2" , 3/4" and 1" sizes (for example PVCL-436-010 is the 1" adapter), the PVCL series simplifies manifold and header construction. Designed for contractors and experienced DIYers, these fittings deliver faster, safer installations while avoiding solvent exposure. Keep a removal tool on hand for repositioning; store fittings out of direct sunlight when possible to maximize service life.
