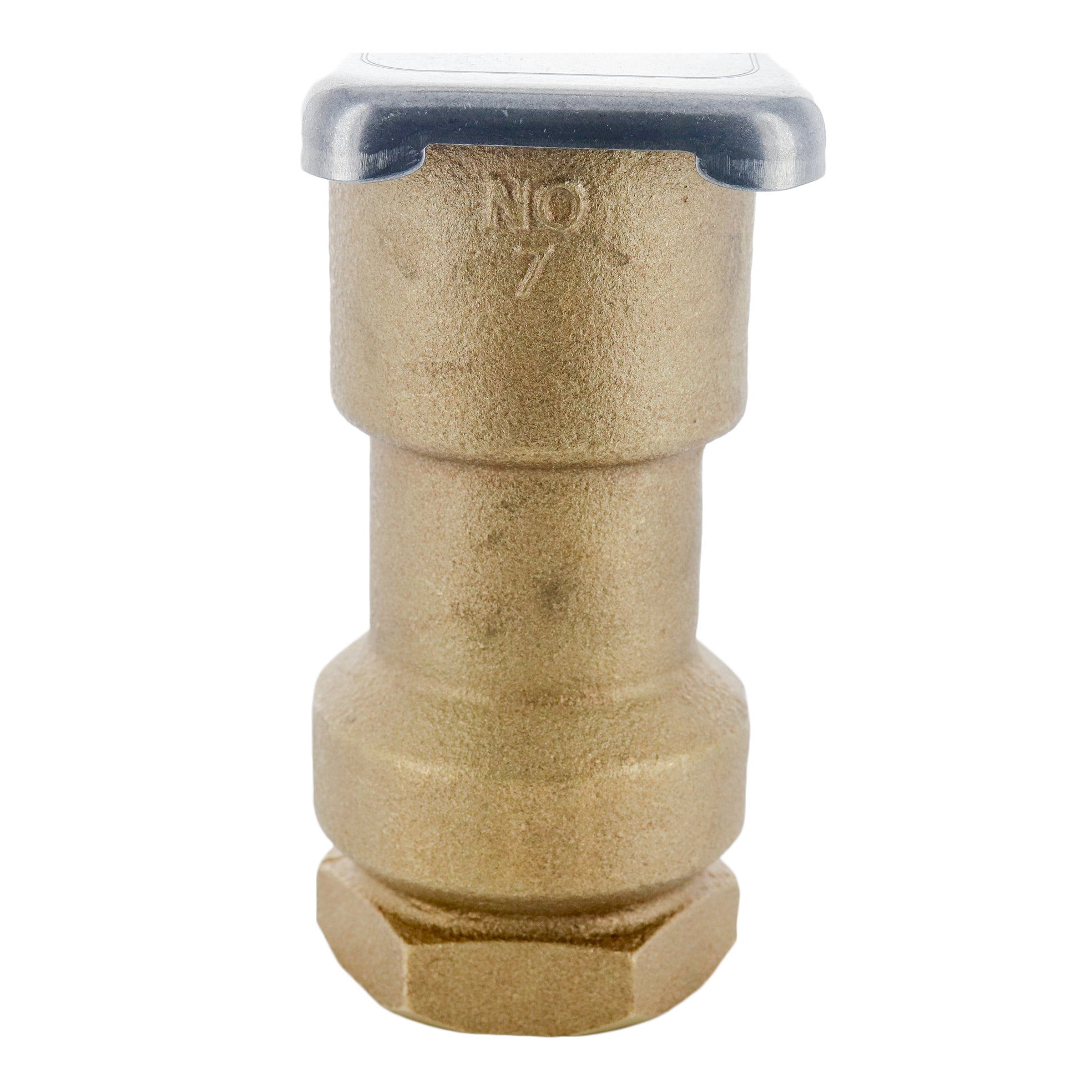

Front-angle view of Rain Bird Model 7 quick-coupling valve with metal cover, showing one-piece red-brass body and top access opening for valve key.

Rain Bird 7 - 1-1/2" Quick-Coupling Valve, Metal Cover

Brand: Rain Bird
Save 27%
$296.02
$214.62
SKU 7VALVE

Notify me when back in stock

Rain Bird Model 7 quick-coupling valve provides reliable, convenient water access for potable and non-potable irrigation systems. Built from rugged red brass with a one-piece body and a corrosion-resistant stainless-steel spring, it delivers long service life in commercial and residential installations.

  • 1-1/2" (40/49) inlet size for high-flow connections.
  • Durable metal cover specifically on Model 7 for added protection.
  • One-piece red-brass body for strength and minimal maintenance.
  • Corrosion-resistant stainless-steel spring for reliable operation.
  • Overall height: 5 3/4" (14.6 cm); compact profile for installation.
  • Pressure range: 5–125 psi; compatible with Rain Bird 7K valve key.

Designed for irrigation professionals and property managers, the Model 7 couples robust materials with simple operation. Refer to Rain Bird Quick Coupling Valves technical specifications and performance charts for detailed flow curves, installation guidance, and parts information. Routine inspection and use of the correct valve key maintain reliable, leak-free access.

Reviews

Frequently Asked Questions

What size inlet does the Model 7 valve use?
Model 7 uses a 1-1/2" (40/49) inlet for high-flow connections. See the Rain Bird tech spec for flow curves and sizing.
How durable is the metal cover on Model 7?
The metal cover protects the valve in heavy-use sites; the red-brass body and stainless-steel spring provide long service life with routine maintenance.
Is the Model 7 suitable for potable water systems?
Yes. Rain Bird quick-coupling valves are specified for potable and non-potable systems; always follow local codes during installation.
Can I operate Model 7 without a valve key?
No. The valve requires the correct key (Rain Bird 7K) to access water and prevent misuse; use the specified key for safe operation.
