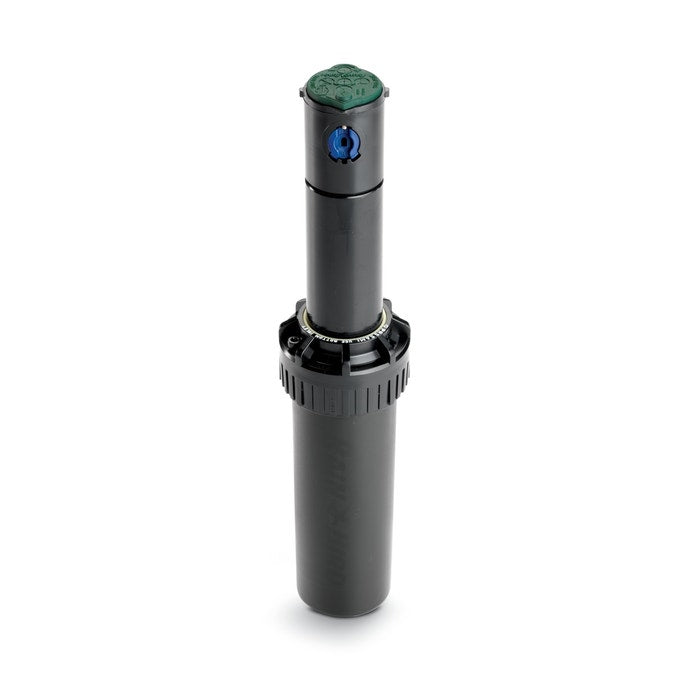

Rain Bird 5000+ Plus Series Pop-up Rotor | Choose Your Selection
Brand: Rain Bird
Save 39%
Original Price
$24.88
Current Price
$15.22
SKU 5004+PC
Engineered to be the Industry’s Most Reliable and Best Performing Rotor
Features:
- Oversized wiper seal prevents leaks and protects internals from debris
- Rain Curtain™ nozzles deliver even distribution over the entire radius including large wind-resistant droplets and gentle close-in watering resulting in greener turf using less water
- A history of proven performance and reliability tested in millions of installations
- Self-flushing arc adjustment port that prevents the buildup of debris
- 5-year trade warranty
Specs:
- Precipitation rate: 0.20 to 1.50 in/hr (5 to 38 mm/h)
- Radius: 25 to 50 feet (7.6 to 15.2 m)
- Radius may be reduced up to 25% with radius reduction screw
- Pressure: 25 to 65 psi (1.7 to 4.5 bar)
- Flow Rate: 0.76 to 9.63 GPM (3.0 to 36.6 l/m; 0.17 to 2.19 m3/h)
- Reversing full- and part-circle adjustment from 40° - 360°
- Standard nozzle trajectory of 25°. Low angle nozzle trajectory of 10°. MPR nozzles varied nozzle trajectory between 12° - 25°
Optional Features:
- Plus (+) Flow shutoff: “The Green Top.” Reduce downtime on jobs by flushing and nozzling rotors without running back and forth to the controller or valves
- PRS (R) with flow optimizer technology: The 45 psi pressure regulator lowers water bills, provides exact flow of each rotor, equalizes lateral lines, and eliminates misting and fogging
- SAM Seal-A-Matic™ check valve: holds up to 7 feet (2.1 m) of elevation change
- Stainless steel (SS) riser: helps deter vandalism on public turf areas (available on 4 and 6" models)
- Purple cover (NP) : for non-potable systems
Documents:
- 5000 Series Rotor Sell Sheet
- 5000 Series Rotors Tech Spec
- 5000 Series Rotor Brochure
- 5000 Series Rotors as Replacement for 5500 Rotors
- 5000 Series Rotors vs Hunter I-20: Competitor Comparison
- 5000 Series MPR Nozzles Tech Spec
- 5000 PRS Rotor: Aquatek Irrigation Study
- Turn High Pressure into Lower Water Bills Brochure
- PRS Flow Comparisons and Savings Chart
- Rotors Brochure
- 5000 Series Rotors: Competitive Test Results
- 5000 and 5000 Plus MPR Nozzles Performance Charts
- 5000 and 5000+ Series Rotors Manual - Europe Multilingual
