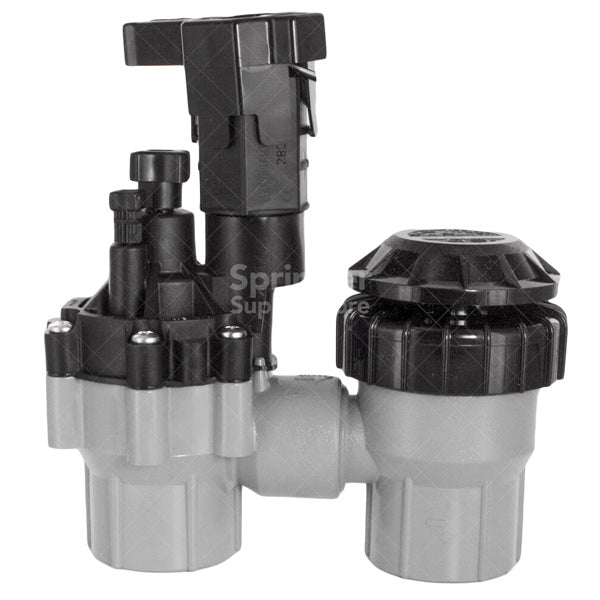

Rain Bird 075ASVF 3/4-inch anti-siphon irrigation valve, plastic body front view showing threaded NPT inlet and integrated vacuum breaker (product perspective).

Rain Bird 075ASVF 3/4" Anti-Siphon Valve with Flow Control

Brand: Rain Bird
Save 28%
$43.45
$31.50
SKU 075ASVF
In Stock (392)

Notify me when back in stock

The Rain Bird 075ASVF 3/4" Anti-Siphon Valve combines reliable DVF angle-valve performance with an integrated atmospheric vacuum breaker to prevent backflow. Designed for residential irrigation, this above-ground valve includes flow control and is compatible with standard sprinkler timers. The unit is I.A.P.M.O. and A.S.S.E. listed and engineered for outdoor durability when installed according to local codes.

  • Model & Size: 075ASVF — 3/4" NPT female inlet and outlet; compact plastic body for corrosion resistance.
  • Operating Pressure: 15–150 PSI (1.0–10.4 bar) suitable for typical residential systems.
  • Flow Range: 0.2–22 GPM; for flows below 3 GPM use a 200-mesh filter upstream.
  • Electrical: 24 VAC, 50/60 Hz solenoid. Inrush: 0.450 A; Holding: 0.250 A; coil resistance 38 Ω (model-dependent specs).
  • Installation Notes: Install upright at least 6" (15.2 cm) above the highest sprinkler head. Do not place additional valves downstream of the ASVF.
  • Certifications & Use: I.A.P.M.O. and A.S.S.E. listed; city-approved in many jurisdictions. Not recommended for two-wire control or PRS pressure modules.

Rain Bird anti-siphon valves are intended for above-ground installation where local codes permit. Follow the included manual and pressure-loss chart for sizing and winterization. Routine maintenance and upstream filtration extend service life; consult the product manual for troubleshooting and parts replacement.

Reviews

Frequently Asked Questions

What size and thread does the 075ASVF use?
The 075ASVF is a 3/4" NPT female inlet and outlet, designed for standard 3/4" irrigation fittings.
What pressure and flow ranges does this valve support?
Operating pressure is 15–150 PSI; flow range for the 075ASVF is 0.2–22 GPM. Use a 200-mesh filter for flows below 3 GPM.
How should the anti-siphon valve be installed?
Install the valve upright at least 6" (15.2 cm) above the highest head it serves. Do not place any valve downstream of the ASVF.
What electrical requirements does the solenoid need?
The valve uses a 24 VAC, 50/60 Hz solenoid. Typical inrush ~0.450 A and hold ~0.250 A; coil resistance ~38 Ω.
