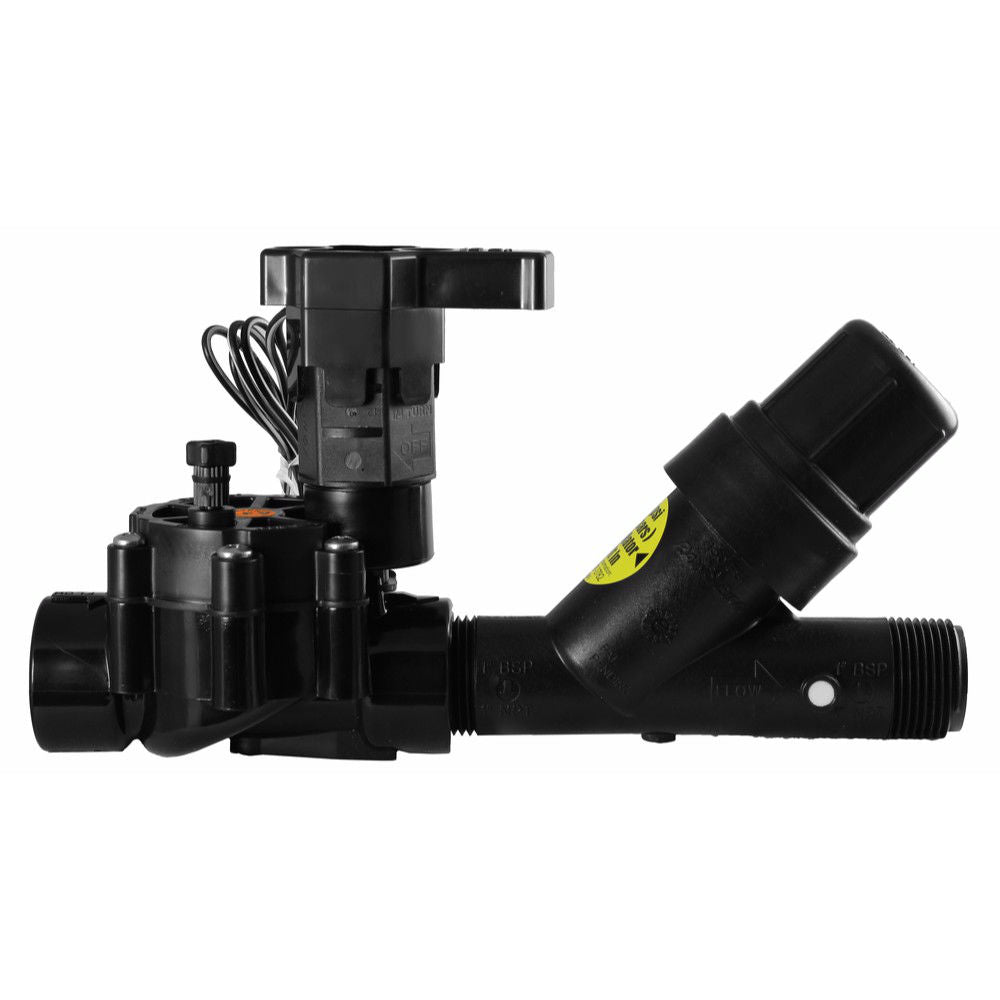

Product image: assembled Rain Bird XCZLF-100-PRF low-flow control zone kit with 1-inch valve and 1-inch pressure-regulating screen filter.

Rain Bird XCZLF-100-PRF Low Flow Control Zone Kit, 1 in.

Brand: Rain Bird
Save 28%
$82.46
$59.78
SKU XCZLF-100-PRF
In Stock (2)

Notify me when back in stock

Compact, assembled control zone kit engineered for low-flow drip and xerigation lines. The XCZLF-100-PRF pairs Rain Bird's 1-inch low-flow valve with a 1-inch pressure-regulating RBY screen filter to deliver reliable on/off control, stable downstream pressure and integrated filtration in a single, space-saving assembly that reduces leak points and speeds installation.

  • Includes: 1" low-flow valve and 1" PR RBY filter (assembled).
  • Flow range: 0.2 to 10.0 GPM (0.8 to 37.85 l/m), suitable for very small drip zones and low-flow applications.
  • Inlet pressure: 20 to 150 PSI; regulated outlet: 40 PSI on the 1" PRF version.
  • Filtration: 200 mesh stainless steel screen (~75 micron); replacement screen RBY-200SSMX available.
  • Construction: Heavy-duty, glass-filled nylon valve body designed for long life and reliable low-flow performance.
  • Space-saving design: Shorter assembly fits more kits in a standard valve box — ideal for compact installations and panels.

This kit ships assembled and ready to install, providing on/off control, pressure regulation, and screen filtration with fewer connections. For applications with sustained flows below 5 GPM, Rain Bird recommends upstream filtration to protect the PR screen. User manual, sell sheet, and technical specifications are available for download to assist selection and installation.

Reviews

Frequently Asked Questions

What flow range does this kit support?
The XCZLF-100-PRF supports 0.2 to 10.0 GPM (0.8 to 37.85 l/m), ideal for very small drip zones and low-flow applications.
Does this kit regulate downstream pressure?
Yes. The PR RBY filter regulates outlet pressure to 40 PSI while the inlet operating range is 20–150 PSI.
What filtration is used and are replacement screens available?
The kit uses a 200-mesh (≈75 μm) stainless steel screen. Replacement screen RBY-200SSMX is available.
