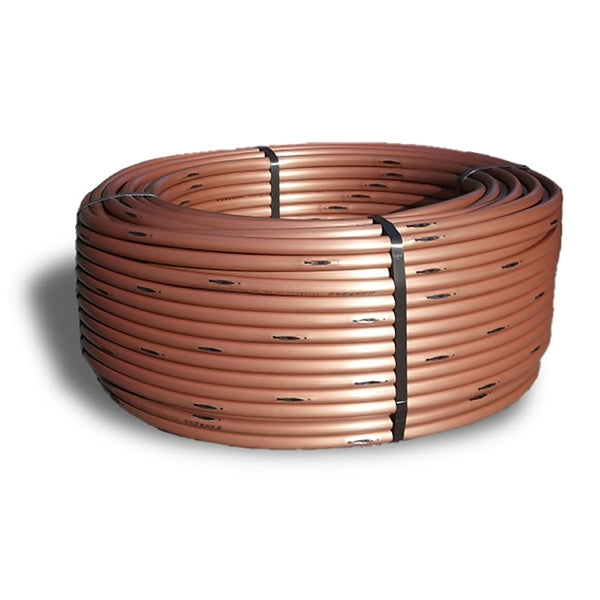

Coiled copper-colored Rain Bird XFS dripline (500 ft) showing flexible dual-layer tubing and low-profile pressure-compensating emitters.

Rain Bird XFS0618500 Copper Shield Dripline — 0.6 GPH, 18in, 500 ft

Brand: Rain Bird
Save 27%
$373.06
$270.47
SKU XFS0618500
In Stock (5)

Notify me when back in stock

The Rain Bird XFS0618500 XFS Sub-Surface Dripline with Copper Shield™ Technology delivers reliable, low‑maintenance irrigation for turf, shrubs and narrow planting areas. This 500 ft coil features pressure‑compensating 0.6 GPH emitters spaced every 18 inches and a copper‑colored, dual‑layer tubing that resists root intrusion, algae, UV and chemical degradation.

  • Copper Shield™ root‑intrusion protection with a copper chip at each emitter for long‑term sub‑surface reliability.
  • Pressure‑compensating 0.6 GPH emitters provide consistent flow across long lateral runs within an 8.5–60 psi operating range.
  • 18 in. emitter spacing and a 500 ft coil suitable for narrow beds, lawns, and landscape edges.
  • Dual‑layer tubing specifications: 0.634" outside diameter, 0.536" inside diameter, 0.049" wall thickness for superior flexibility and durability.
  • Compatible with Rain Bird Easy Fit compression fittings, XF dripline insert fittings and standard 17 mm barbed insert fittings for quick connections.
  • Requires 120 mesh filtration; use an air/vac relief valve when installing below soil to prevent vacuum issues.

Designed for both on‑surface and sub‑surface installation, XFS dripline simplifies layout, reduces maintenance and improves uniformity. Its low‑profile emitters reduce in‑line pressure loss while a self‑flushing emitter path improves clog resistance. Install with recommended filtration and follow Rain Bird installation guidelines for best performance.

Reviews

Frequently Asked Questions

What pressure range does this dripline require?
Operates reliably between 8.5 and 60 psi; pressure‑compensating emitters maintain uniform flow across that range.
Can I bury this tubing for sub‑surface irrigation?
Yes. XFS is designed for on‑surface and sub‑surface use; use an air/vac relief valve when installing below soil.
What filtration is recommended to prevent clogging?
Use a 120 mesh filter or finer to protect the emitters; the emitter design also helps resist grit and clogging.
Which fittings are compatible with the XFS dripline?
Accepts Rain Bird Easy Fit compression fittings, XF insert fittings and standard 17 mm barbed insert fittings.
