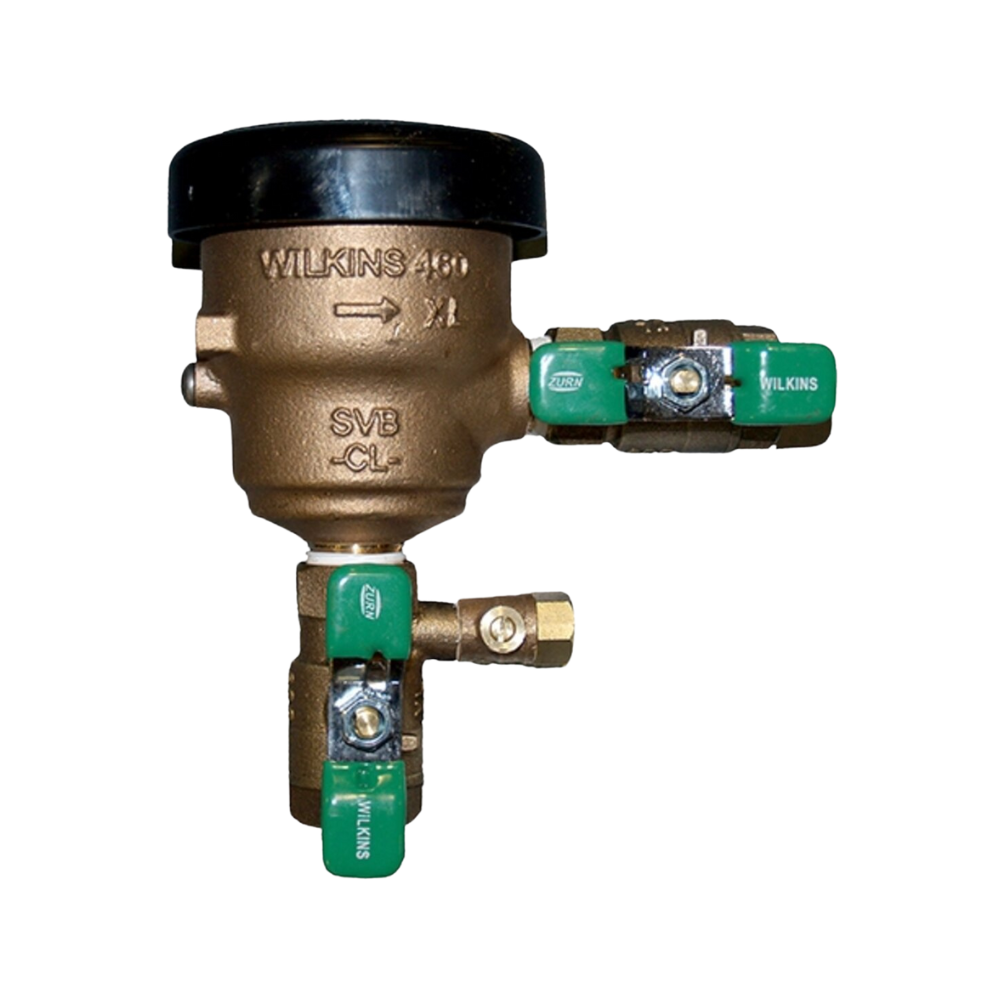

Wilkins 460XL 1 in. Spill-Resistant Pressure Vacuum Breaker

Wilkins 460XL 1 in. Spill-Resistant Pressure Vacuum Breaker

Brand: Zurn Industries, LLC
Save 24%
$835.86
$635.86
SKU 1-460XL

Notify me when back in stock

The Wilkins 460XL 1 in. Spill-Resistant Pressure Vacuum Breaker provides high-hazard backsiphonage protection for point-of-use applications. Its spill-resistant diaphragm and modular construction reduce start-up spillage and simplify service while meeting low-lead requirements.

  • Cast bronze (ASTM B-584) low-lead body for corrosion resistance and long service life.
  • Separate diaphragm seals the air inlet to minimize or eliminate start-up spillage.
  • Rated for 150 PSI maximum working pressure and 180°F maximum working temperature.
  • Hydrostatic test pressure 300 PSI; designed for constant pressure applications.
  • FDA-approved silicone elastomers, polypropylene polymers and 300 series stainless steel springs.
  • ASSE-listed and IAPMO/CSA certified; meets NSF/ANSI 61 and approved by the USC Foundation for Cross Connection Control.

Designed for indoor and outdoor point-of-use installations, the 460XL features 1 in. FNPT connections and a compact vertical mounting profile. Refer to the product specification and installation sheets for dimensions, maintenance, and replacement parts. Technical documents and repair parts lists are available with the product listing.

Reviews

Frequently Asked Questions

What size and thread type does the 460XL use?
The 460XL uses 1 in. female NPT (FNPT) connections and is intended for vertical, point-of-use installation.
How much pressure and temperature can the 460XL handle?
Rated for 150 PSI maximum working pressure and 180°F maximum working temperature; hydrostatic test pressure is 300 PSI.
Does the 460XL reduce start-up spillage during installation?
Yes. A separate diaphragm seals the air inlet, making the 460XL spill-resistant and reducing or eliminating start-up spillage.
