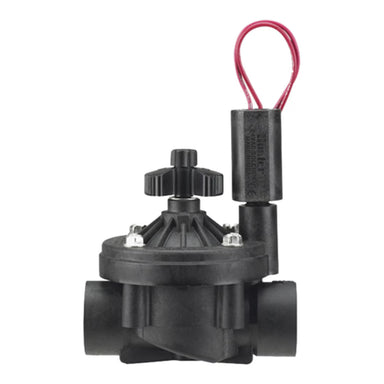

Hunter ICV Valves

For a long-lasting valve that can deliver dependable performance at commercial sites, this is the heavy-duty workhorse you can count on.
Created to handle the wide range of conditions different sites will bring, this valve includes both a fabric reinforced diaphragm and flow control as standard features, and can consistently withstand pressures of up to 220 PSI while handling the continual hammer that such forces will produce.
The ICV also offers the added option of the Accu-Set pressure regulator to maintain a safe, constant water pressure level. It is also exceptionally easy to service, with bonnet fasteners that can be loosened and tightened using a variety of common contractor tools.
  • Save 25%
    Original Price $17.82
    Current Price $13.36
    Hunter

    Hunter - 606800 - Replacement 24V Solenoid

    In Stock (274)

    Hunter - 606800 - Replacement 24V Solenoid Fits ALL Hunter Valves Replacement Solenoid

    Original Price $17.82
    Current Price $13.36
    Save 25%
    In Stock (274)
  • Save 25%
    Original Price $40.93
    Current Price $30.70
    Hunter

    Hunter - 458200 - DC Latching Solenoid for all Valves

    In Stock (127)

    For all Hunter Plastic Valves Battery-Operated Controllers: SVC, WVS, & NODE Use INSTEAD of AC

    Original Price $40.93
    Current Price $30.70
    Save 25%
    In Stock (127)
  • Save 25%
    Original Price $59.62
    Current Price $44.72
    Hunter

    Hunter - 518905 - 3" ICV Sentry Diaphragm Assembly

    10+ day delay

    Replacement Diaphragm Assembly for Hunters IVC-301 Documents:  ICV-300 Replacement Parts

    Original Price $59.62
    Current Price $44.72
    Save 25%
    10+ day delay
ICV MODELS
ICV-101G - 1" plastic globe valve
ICV-151G - 1 1/2" plastic globe valve
ICV-201G - 2" plastic globe valve
ICV-301E - 3" plastic globe/angle valve
Accu-Set™ Pressure Regulator

DIMENSIONS
• ICV-101G: 5 1/2" H x 4 3/4" L x 4" W (14 cm H x 12 cm L x 10.2 cm W)
• ICV-151G: 7 1/8" H x 6 7/8" L x 5 1/2" W (18 cm h x 17.5 cm L x 14 cm W)
• ICV-201G: 7 1/8" H x 6 7/8" L x 5 1/2" W (18 cm H x 17.5 cm L x 14 cm W)
• ICV-301E: 10 3/4" H x 9 1/4" L x 7 3/8" W (27.3 cm H x 23.5 cm L x 18.7 cm W)
• Female inlet/outlet: 1", 1 1/2", 2" & 3" NPT or BSP

OPERATING SPECIFICATIONS
• Flow: 0.10 to 300 GPM (0.06 to 68.10 m3/hr; 0.9 to 1,135.5 l/min)
• Pressure: 20 to 220 PSI (1.4 to 15.0 bars; 138 to 1500 kPa)
• Ambient temperature: up to 150°F (66°C)
• Heavy-duty solenoid: 24VAC, 370mA inrush current,
190mA holding current, 60 cycles; 475mA inrush current,
230mA holding current, 50 cycles
• Accu-Set: 20 PSI (1.4 bars, 138 kPa) minimum operating pressure.
Regulates from 20 to 100 PSI (1.4 to 7.0 bars; 138 to 689 kPa)

OPTIONS AVAILABLE
• Accu-Set pressure regulator
• Reclaimed water ID handle (part # 561205 - 1", 1 1/2", & 2") (part # 515005 - 3")
• DC latching solenoid (part # 458200)
• Solenoid conduit cover (part # 464322)
• Drip Irrigation Valve Kit (part # ICZ101)
