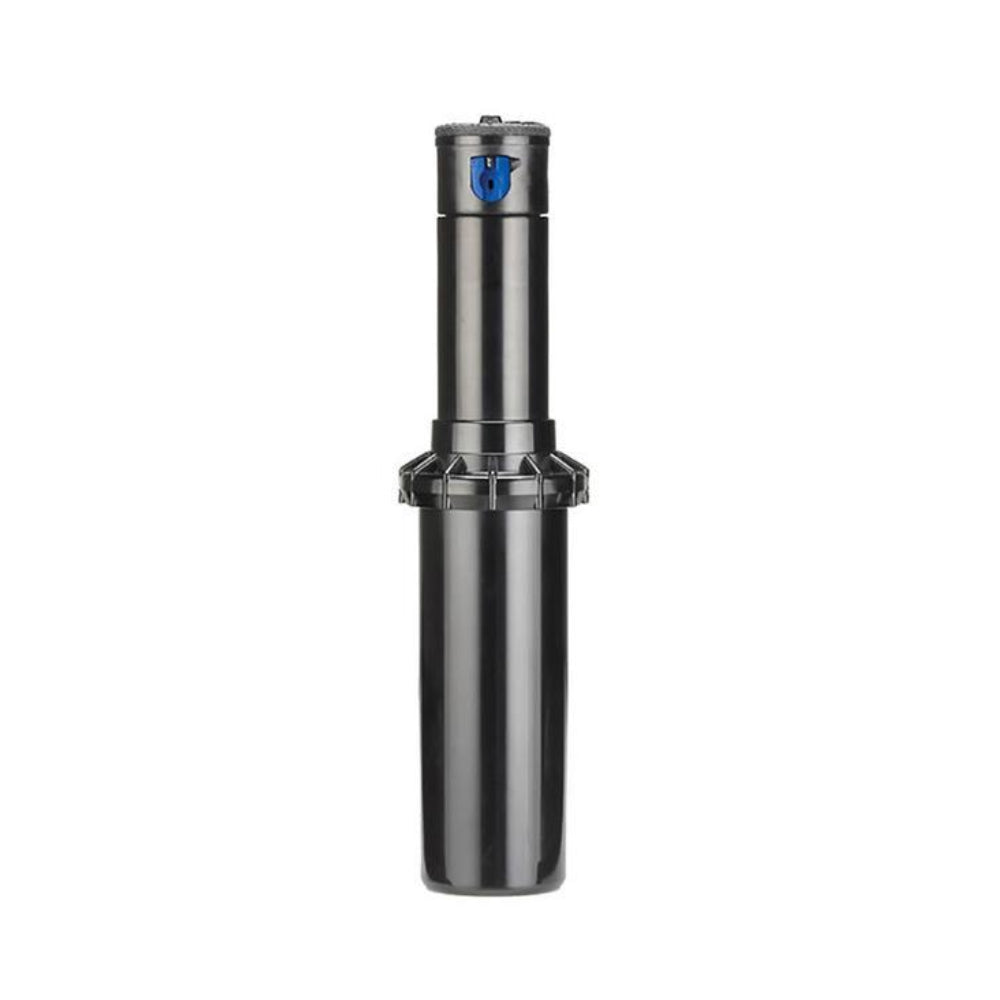

Hunter PGP Sprinkler Head Parts

Why settle for second best when you can have the sprinkler by which everything else is measured.
The PGP is Hunter's original product, the item that put the company on the map in 1981. Its exceptional design and impressive performance placed the rotor a cut above back then, while continuous improvements and enhancements have allowed it to remain the number one selling rotor in the world ever since. With the superior ability to deliver even water distribution from precision engineered nozzles, this sprinkler is unequaled for reliability, durability, versatility, and value. With its patented features and Hunter's years of experience in gear-drive technology, it's no wonder the Hunter PGP remains the professional's choice.
Hunter PGP Nozzles
Hunter PGP Nozzles
Hunter PGP Parts and Accessories
Hunter PGP Parts and Accessories
  • Close-up photograph of the Hunter 130900SP red nozzle rack installed in a PGP-ADJ rotor, showing nozzle tips and rack seating detail.
    Hunter 130900SP red standard nozzle rack showing twelve red interchangeable PGP-ADJ nozzles on a white background, front view, product detail. Save 63%
    $1.16
    $0.43
    Hunter

    Hunter 130900SP Red Nozzle Rack for PGP-ADJ

    In Stock (350)

    Restore reliable spray coverage with the Hunter 130900SP red standard nozzle rack for PGP-ADJ rotors. This OEM nozzle set replaces worn or damaged ...

    View full details
    $1.16
    $0.43
    Save 63%
    In Stock (350)
  • Side view of the Hunter 120300 adjustment screw installed in a PGP rotor nozzle, showing threads, seating position, and screw profile.
    Close-up of Hunter PGP nozzle set screw (part 120300), a threaded metal screw used to secure the rotor nozzle and keep it seated.
    Save 62%
    $1.11
    $0.42
    Hunter

    Hunter PGP Nozzle Set Screw (Part 120300)

    In Stock (185)

    OEM replacement set screw for Hunter PGP series rotors (part 120300). This small but critical component secures the nozzle/jet breaker in place and...

    View full details
    $1.11
    $0.42
    Save 62%
    In Stock (185)
Model
  • PGP-ADJ - 4" Pop-up (10 cm)

Dimensions
  • Overall height: PGP-ADJ - 7-3/8" (19 cm)
  • 3/4" female inlet NPT
  • Exposed diameter: 1-3/4" (4 cm)

Operating Specifications
  • Discharge rate: 0.5 to 14.1 GPM (0.11 to 3.20 m3/hr; 1.9 to 53.4 l/min)
  • Radius: 22' to 52' (6.7 to 15.8 m)
  • Recommended pressure range: 30 to 70 PSI (2.1 to 4.8 bars; 206 to 482 kPa)
  • Operating pressure range: 20 to 100 PSI (1.4 to 6.9 bars; 137 to 689 kPa)
  • Precipitation rates: approximately 0.4" (10 mm) per hour at 50 PSI (3.4 bars; 344 kPa) for spacing from 18' to 45' (5.5 to 13.7 m)
  • Nozzle trajectory: standard - 25°; low angle - 13°
