Rain Bird 5000 Plus Rotors

Relax with the knowledge your landscape is being watered by reliable 5000 Series Rotors and industry-leading Rain Curtain Nozzle Technology. Rain Bird 5000, 5000 Plus and 5000 Plus PRS Series Rotors are ideal for medium to large-size lawns and evenly distribute water from 25 to 50 feet.

Outstanding ResultsSuperior Distribution Uniformity. 5000 Series Rotors with Rain Curtain Technology are engineered to deliver a uniform spray pattern, giving you a consistently green lawn throughout.
Superior Wind ResistanceThe larger water droplets produced by Rain Curtain technology prevent misting and airborne evaporation so the right amount of water is delivered to the right place, saving you water and money.

Superior Close-in WateringGentle close-in watering eliminates dry spots around the rotor, prevents seed washout and allows the turf to grow healthy with no matting or bending.
Filters

    In Stock ()
    • For All Hunter Rotor Models
    • EXCEPT: I-90, I-60, and PGJ
    List Price:  $1.00
    Our Price:  $0.82
    You Save:  $0.18
    In Stock ()

    In Stock (50+)
    • Universal Rain Bird Rotor Tool
    • Flat-blade screwdriver & riser pull-up tool
    • Adjusts distance & amount of water
    List Price:  $1.93
    Our Price:  $1.83
    You Save:  $0.10
    In Stock (50+)

    In Stock (50+)
    • Used to pull sprinkler head up
    • Allows you to change nozzles and arc adjustment
    • Works with Rain Bird 5000 Series, 5500 Series, Falcon 6504, 7005 and 8005 Series Rotors
    List Price:  $8.20
    Our Price:  $6.07
    You Save:  $2.13
    In Stock (50+)

    In Stock (50+)
    • For 5000 & 5000 Plus Rotors
    • Effective close-in watering
    • Includes 4 low angle (10ᄚ trajectory) nozzles
    • Includes 8 standard angle (25ᄚ trajectory) nozzles
    • Self-aligning
    List Price:  $1.49
    Our Price:  $1.10
    You Save:  $0.39
    In Stock (50+)

    In Stock (50+)

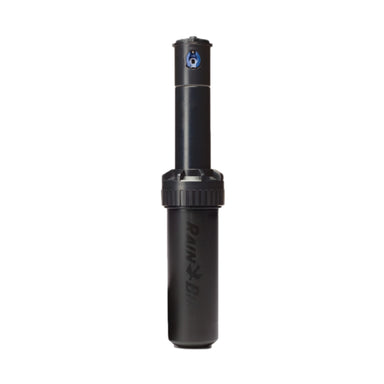

    • Pop-up Rotor
    • Part Circle
    • Adjustable Arc: 40 - 360 deg.
    • Pop-up Height: 4 in.
    • Overall Height: 7 3/8 in.
    • Exposed Diameter: 1 5/8 in.
    • With Check Valve
    • Green Cap
    List Price:  $14.75
    Our Price:  $13.31
    You Save:  $1.44
    In Stock (50+)

    In Stock (50+)
    • Pop-up Rotor
    • Full Circle
    • 360 deg. Only
    • Pop-up Height: 4 in.
    • Overall Height: 7 3/8 in.
    • Exposed Diameter: 1 5/8 in.
    • No Check Valve
    • Green Cap
    List Price:  $12.75
    Our Price:  $8.67
    You Save:  $4.08
    In Stock (50+)

    In Stock (29)
    • Pop-up Rotor
    • Part Circle
    • Adjustable Arc: 40 - 360 deg.
    • Pop-up Height: 6 in.
    • Overall Height: 9 5/8 in.
    • Exposed Diameter: 1 5/8 in.
    • With Check Valve
    • Green Cap
    List Price:  $27.00
    Our Price:  $19.89
    You Save:  $7.11
    In Stock (29)

    In Stock (23)
    • Pop-up Rotor
    • Full Circle
    • 360 deg. Only
    • Pop-up Height: 4 in.
    • Overall Height: 7 3/8 in.
    • Exposed Diameter: 1 5/8 in.
    • With Check Valve
    • Green Cap
    List Price:  $14.75
    Our Price:  $13.31
    You Save:  $1.44
    In Stock (23)

      Operating Range
      • Precipitation rate: 0.20 to 1.01 inches per hour (5 to 26 mm/h)
      • Radius: 25 to 50 feet (7,6 to 15,2 m)
      • Radius may be reduced up to 25% with radius reduction screw
      • Pressure: 25-65 psi (1,7 to 4,5 bar)
      • Flow Rate: 0.73 to 9.63 gpm (4,2 to 36,6 l/m)
      Specifications
      • 3/4" (20/27) NPT female bottom threaded inlet
      • Reversing full and part circle adjustment 40° – 360°
      • Full circle only adjustment 360°
      Dimensions
      • Pop-up height: Shrub; 4" (10,2 cm); 6" (15,2 cm); 12" (30,5 cm)
      • Overall body height: Shrub: 7 3/4" (19,7cm) 4": 7 3/8" (18, 5 cm); 6": 9 5/8" (24,5 cm); 12": 16 7/8" (42,9 cm)
      • Exposed surface diameter: 1 5/8" (4,1 cm)
