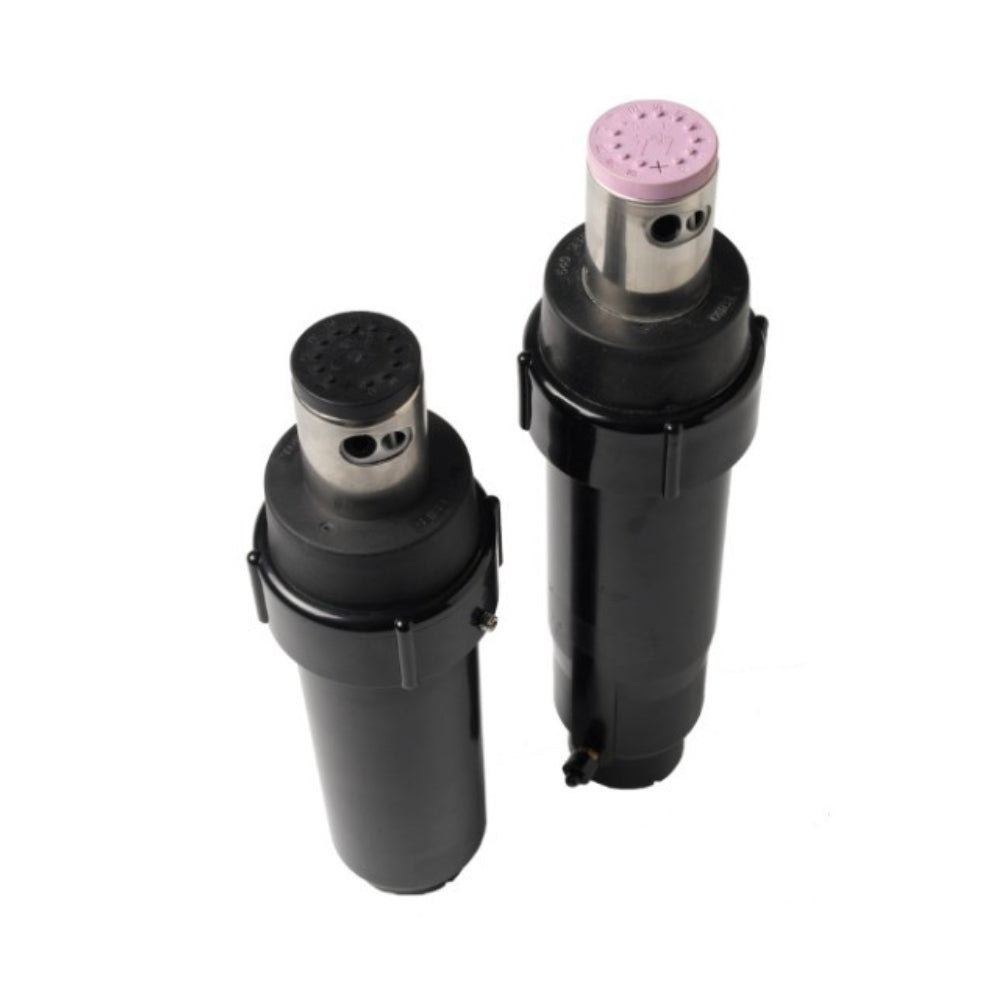

Toro 640 Series Rotors

Considered the most durable, heavy-duty commercial sprinkler available.
The 640 Series is the traditional, proven veteran for athletic fields and other large commercial applications. It is equipped with a standard rubber cover and offers a choice from five nozzles and twelve arcs. A variety of models are available including Valve-In-Head, Check-O-Matic and recycled.
  • Save 36%
    Original Price $260.22
    Current Price $167.29
    Toro

    Toro - 642-02-42 - Toro 640 Rotor C.O.M. 180 deg.

    10+ day delay

    Pop-up Rotor 180 deg. Arc #42 Nozzle Check-O-Matic Pop-up to Nozzle: 2 3/8 in. Considered the most durable, heavy-duty commercial sprinkler avail...

    View full details
    Original Price $260.22
    Current Price $167.29
    Save 36%
    10+ day delay

Features

  • Up to 1/2" (13mm) below-grade installation keeps rotor out of sight and prevents damage
  • Durable stainless steel, engineering plastic and brass construction for reliable performance in the most demanding environments
  • Optional valve-in-head

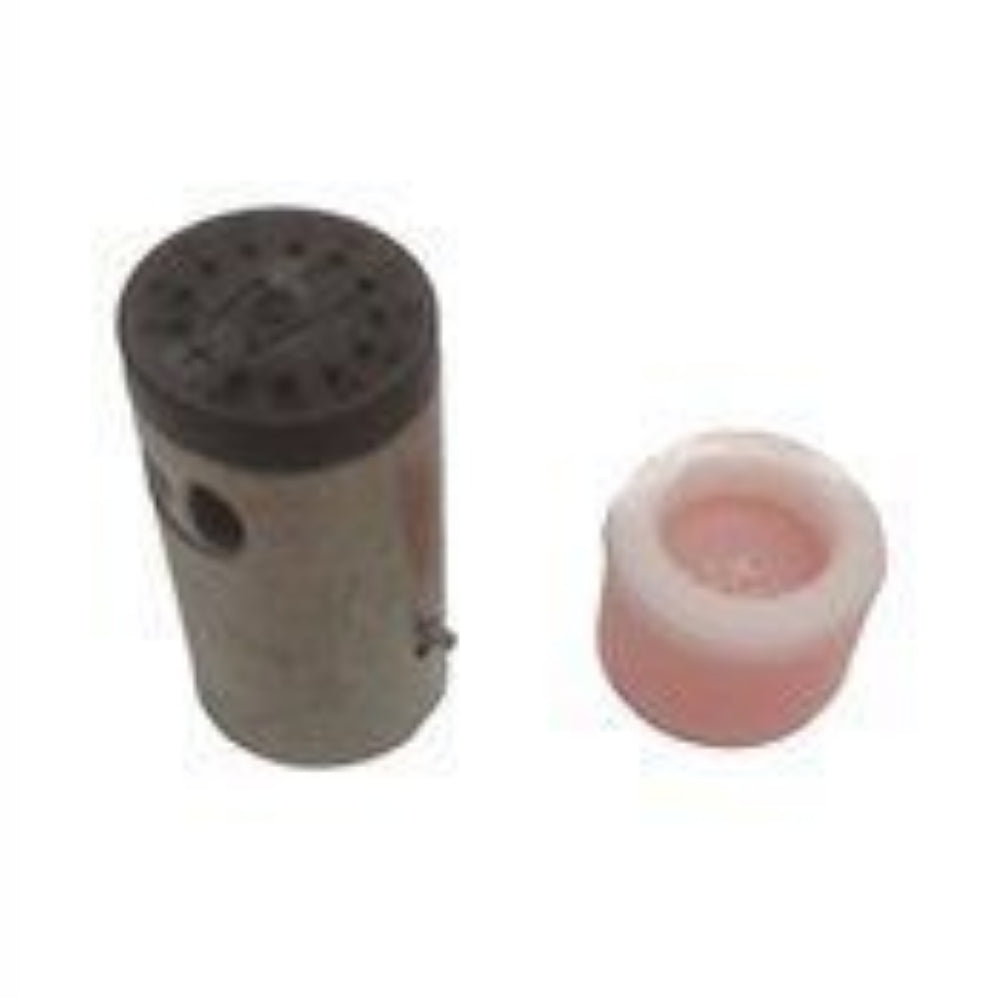

  • Selection of five nozzles and 12 arcs for versatility
Radius 47'-67' (14.3 - 20.4)
Flow 6.0-25.0 gpm (22.7 - 94.6 lpm)
Trajectory 27°
Arc Full Circle; Part circle fixed
Recommended Operating Pressure 40-90 psi (2.8 - 6.2 bar)
Maximum Operating Pressure 100 psi (6.9 bar)
Minimum Operating Pressure 40 psi (2.8 bar)
Inlet 1" (2.5 cm)
Pop-Up Height 2 3/8" (6 cm)
Body Height 9" (VIH-10 1/2") (23cm/26.7cm)
Body Diameter 2 1/2" (6.4 cm)
Cap Diameter 3 1/4" (8.3 cm)
Exposed Diameter 1 3/4" (4.4 cm)
