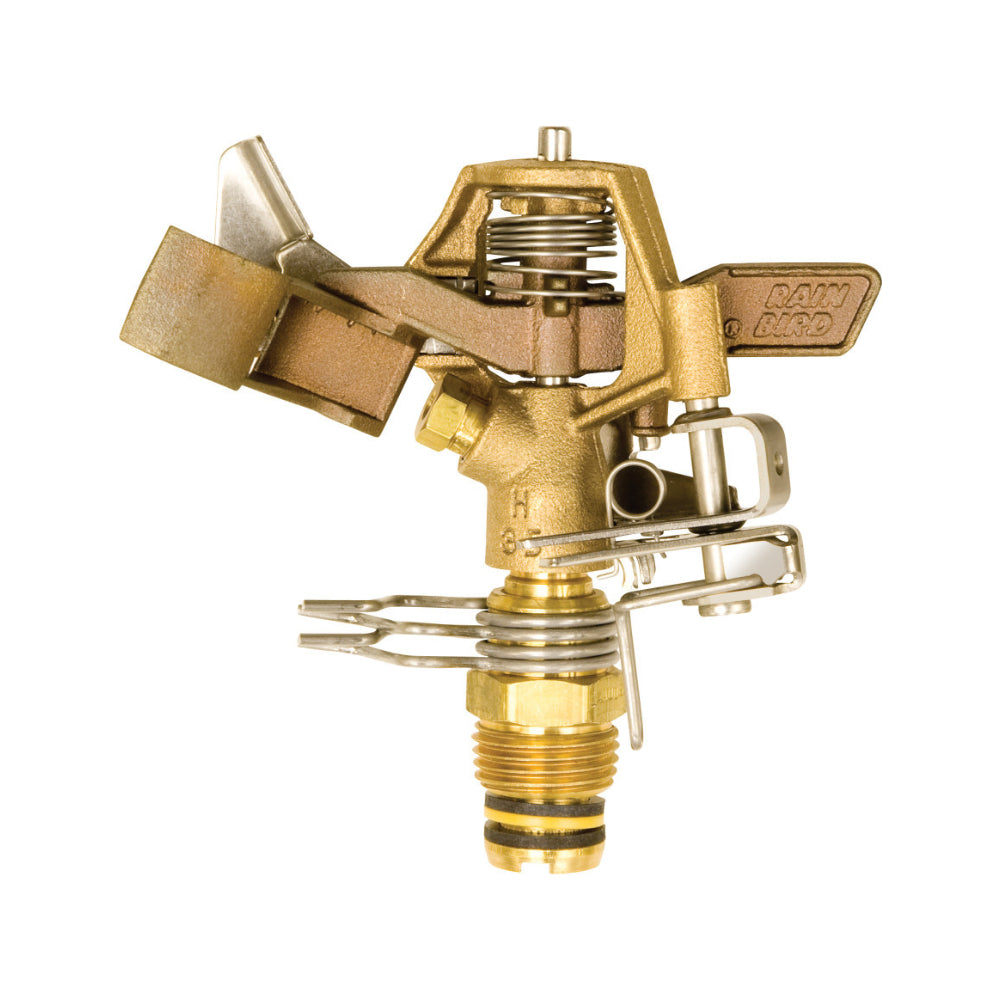

Rain Bird Brass Impact Sprinklers

From the company that invented the first impact sprinkler comes a full line of rugged impacts for every application.
In long-lasting brass and stainless steel, in full- or part-circle models, Rain Bird impacts keep landscapes lush and green all year long.
Rain Bird Brass Impact Sprinklers
Rain Bird Brass Impact Sprinklers

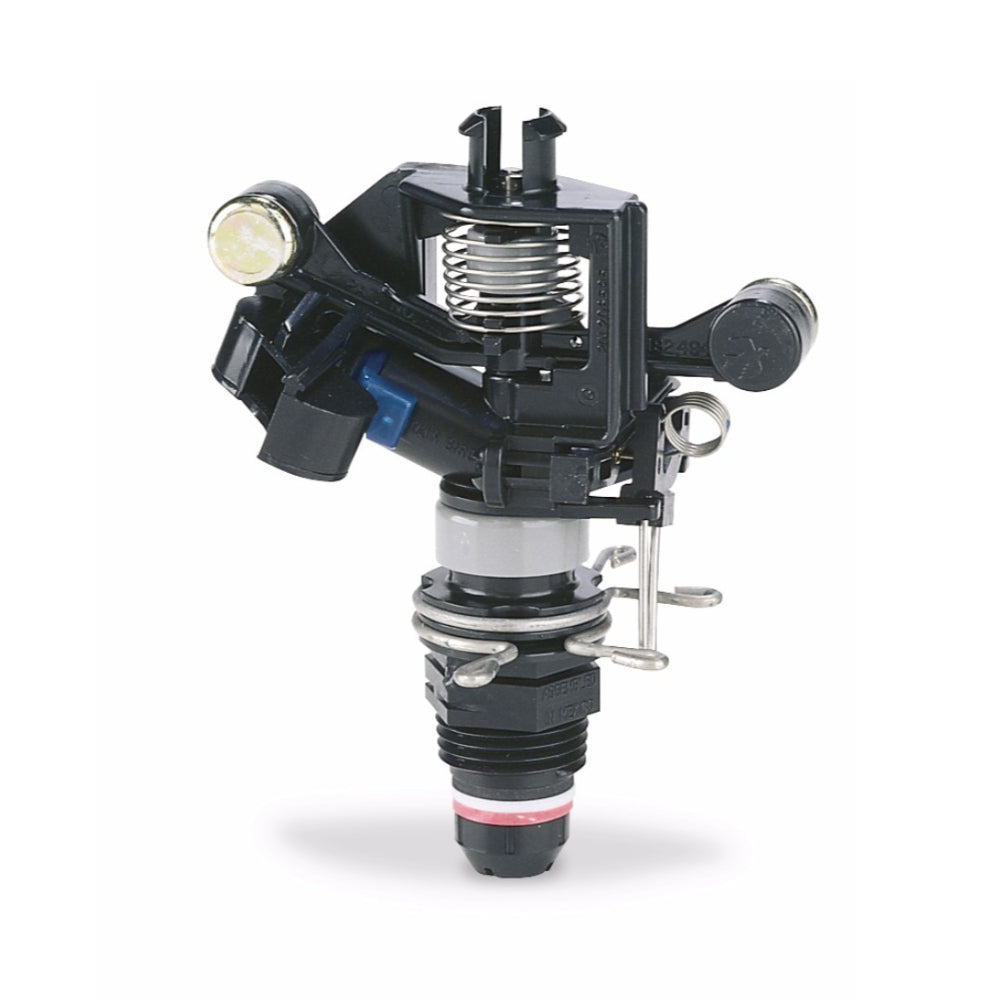

Rain Bird MaxiBird Impact Sprinkler
Rain Bird MaxiBird Impact Sprinkler
  • 65PJADJTNT - RainBird Brass Impact Sprinkler
    65PJADJTNT - RainBird Brass Impact Sprinkler
    Save 27%
    $346.31
    $251.35
    Rain Bird

    Rain Bird - 65PJADJTNT - FC/PC Impact 1 in. FIPT

    10+ day delay

    Adjustable from 20 - 340 deg. Cast brass body and arm Brass bearing sleeve and nipple TNT Bearing Stainless steel trip can be set for full or part...

    View full details
    $346.31
    $251.35
    Save 27%
    10+ day delay
20ADJB

* Precipitation Rate: 0.16 to 0.39 inches per hour (4 to 10 mm/h)
* Radius: 38 to 41 feet (11,6 to 12,5 m)
* Pressure: 30 to 70 psi (2,1 to 4,8 Bars)
* Flow: 2.4 to 5.9 GPM (0,54 to 1,34 m3/h; 0,15 to 0,37 l/s)
* 1/2" (15/21) male threaded inlet.
* For 10 nozzle at normal operating pressure, the highest point of stream is 7 feet (2,1 m) above nozzle.
* Nozzles: 08, 09, 10.

25BPJ-ADJ Series

* Precipitation Rate: 0.41 to 0.66 inches per hour (10 to 17 mm/h)
* Radius: 38 to 41 feet (11,6 to 12,5 m)
* Pressure: 30 to 50 psi (2,1 to 3,5 Bars)
* Flow: 3.1 to 5.0 GPM (0,70 to 1,14 m3/h; 0,20 to 0,32 l/s)
* 1/2" (15/21) male threaded inlet
* Nozzle outlet trajectory: 25°
* Nozzles: 09, 10

35A-TNT Series

* Precipitation Rate: 0.43 to 0.67 inches per hour (11 to 17 mm/h)
* Radius: 42 to 51 feet (12,8 to 15,6 m)
* Pressure: 30 to 60 psi (2,1 to 4,1 Bars)
* Flow: 3.9 to 7.8 GPM (0,89 to 1,77 m3/h; 0,25 to 0,49 l/s)
* 3/4" (20/27) male threaded inlet
* Nozzle outlet trajectory: 27°

65PJADJ-TNT

* Precipitation Rate: 0.76 to 0.94 inches per hour (19 to 23 mm/h)
* Radius: 57 to 65 feet (17,4 to 19,8 m)
* Pressure: 50 to 80 psi (3,5 to 5,5 Bars)
* Flow: 12.9 to 16.5 GPM (2,93 to 3,75 m3/h; 0,81 to 1,04 l/s)
* 1" (26/34) female NPT or BSP threaded inlet
* For standard nozzle at normal operating pressure, the highest point of stream is 10 feet (3,1 m) above nozzle
* Nozzle outlet trajectory: 27°
